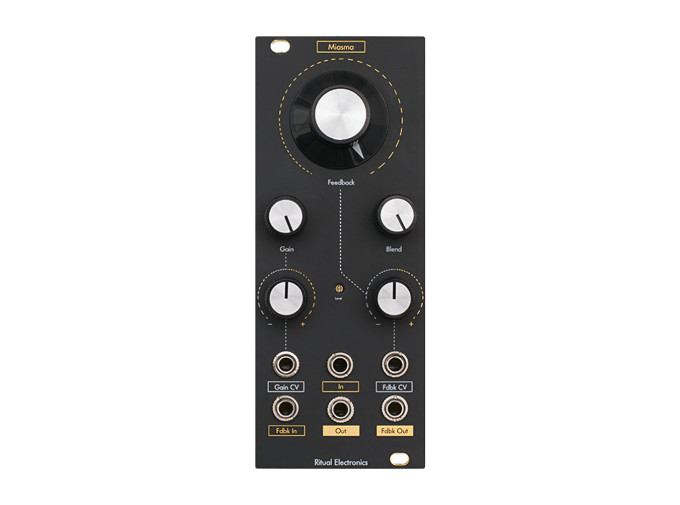

Ritual Electronics Miasma

The Ritual Electronics Miasma is a voltage controlled distortion module with a focus on shredding signal and creating complex feedback patches. The Miasma's feedback path sends distorted signal back into the input with no phase inversion. This causes the module to self oscillate, which can then be processed independently via the module's dedicated Feedback Input and Output. The module also features a selection of diodes connected to a header, giving the user the ability to easily try different diodes to customize the tonal characteristics of their module.

Miasma Features

  • Voltage-controlled distortion with integrated feedback loop
  • Feedback path can push the module into self-oscillation
  • Feedback out/in jacks for routing feedback through external effects
  • Blend knob for wet/dry balance control
  • Voltage control over gain and feedback amount
  • Clipping diodes are mounted on a header, making it easy to experiment with novel diode combinations
  • Eurorack module
  • Width: 10hp
  • Depth: 37mm
  • Current draw: 35mA @ +12V, 30mA @ -12V
