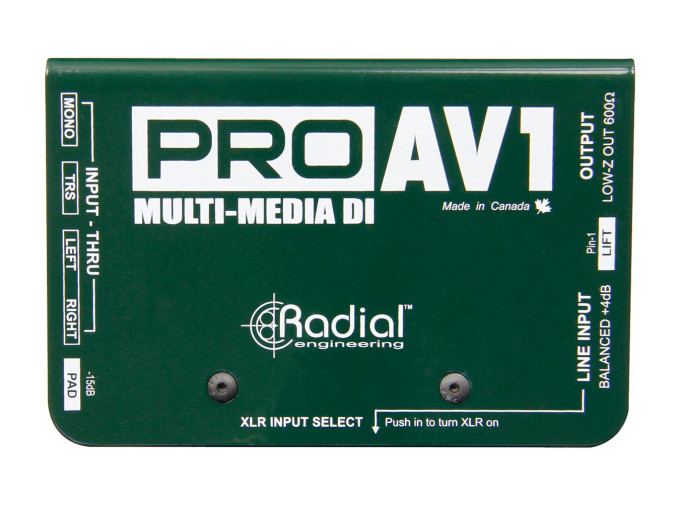

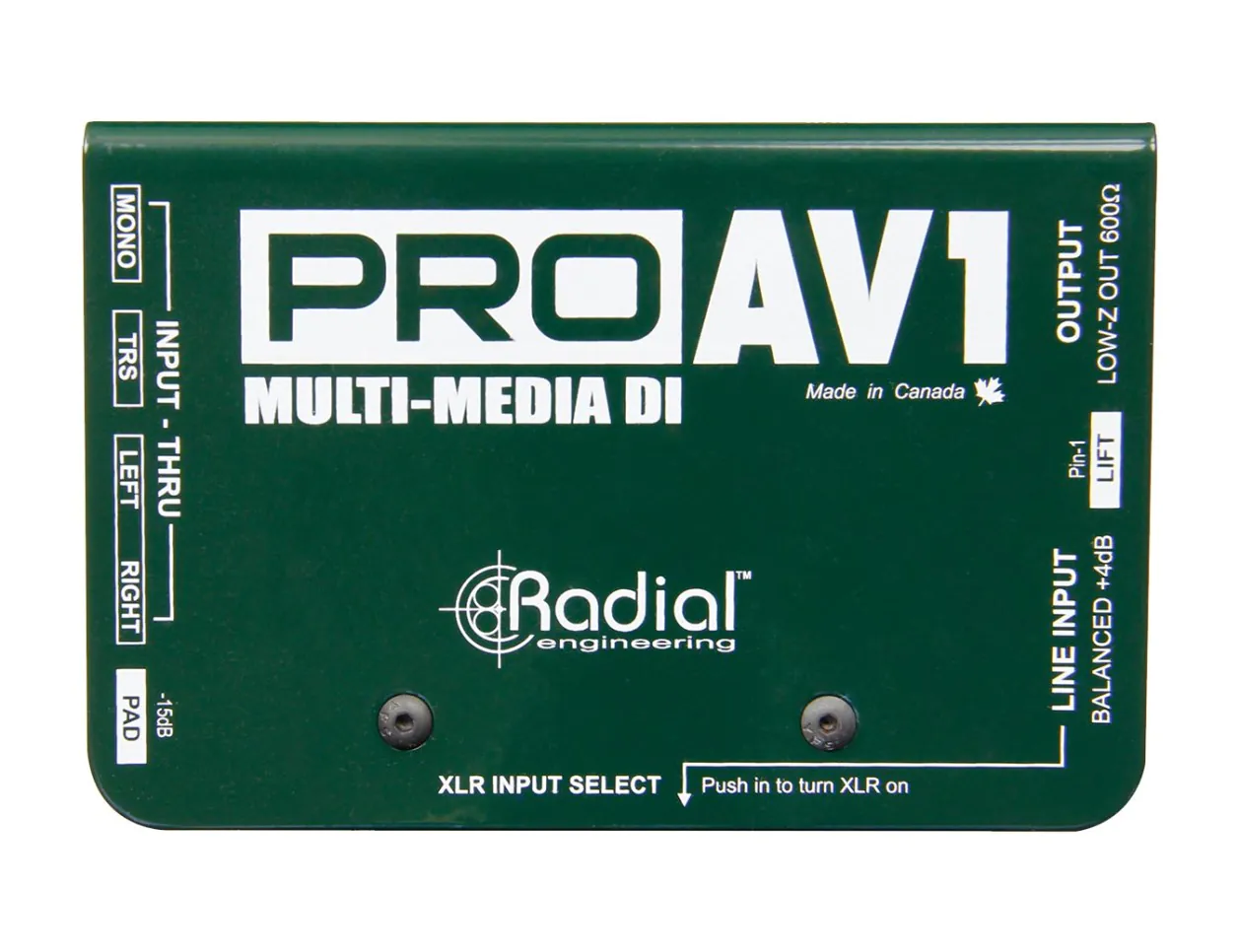

Radial ProAV1

The Radial ProAV1 is a passive direct box specifically developed with the audio-video integrator in mind. The ProAV1 features a variety of stereo inputs that are merged via a resistive mixer to mono, greatly simplifying signal management.

To eliminate the need for various adapters, a "Swiss Army" array of connections are provided, including 1/4" for instruments, RCA and 1/8" connectors for consumer electronics and computers, and a +4dB XLR input(s) for professional systems. Front panel connectors can also be used as thru-puts to allow multiple patch points.

Custom-wound transformers are employed that are able to withstand exceptionally hot levels while maintaining linearity from 20Hz to 18.5kHz. The resulting smooth Bessel curve is warm and natural, making the AV1 particularly adept at handling digital sources that can sound harsh. Transformer isolation adds the benefit of eliminating ground loops that cause audio hum and buzz and video hum bars or snow.

The ProAV1 direct box is ideal for events that interlace audio with video where music sources can include iPods, CD players, and video decks. The Radial ProAV1 will be a welcome addition to the AV technician's tool box.

ProAV1 Features

  • Pro 'Swiss Army knife' direct box for multimedia
  • Easy to use passive ultraquiet design
  • Eliminates ground loops causing hum and buzz
  • Handle huge transients without distortion
  • Mono (ProAV1) and stereo (ProAv2) versions
  • Applications:
  • Computers
  • CD players
  • DVD and video players
  • iPod and MP3 players
  • Cassette decks
  • Balanced line level sources
  • Keyboards, acoustic guitars, bass, active instruments
  • Audio circuit type: Passive, transformer based
  • Number of channels: Single channel (mono)
  • Frequency response: 20Hz ~ 18.5KHz (± 0.2dB)
  • Dynamic range: 128dB
  • Maximum input: +18dB @ 20Hz
  • Total harmonic distortion: 0.01% from 20Hz~20kHz @-10dB
  • Phase deviation: 1° @ 100Hz; 8° @ 20Hz
  • CMR ratio: 100dB @ 60Hz
  • Input impedance: 140k Ohms, unbalanced
  • Output impedance: 150 Ohms, balanced
  • Transformer: Radial RT-DBI, 12:1 ratio
  • Shield: Faraday, mu-metal can
  • Input pad: -15dB
  • Merge:Sums left & right to mono
  • 180° polarity reverse: Inverts absolute phase
  • Ground lift: Disconnects pin-1 at XLR output
  • XLR configuration: AES standard (pin-2 hot)
  • Connectors: 1/4", RCA,  3.5mm, in & thru, XLR-F in, XLR-M out
  • Construction: 14 gauge steel chassis & shell
  • Finish: Baked enamel
  • Size:  (W x H x D) 3.25” x 5” x 1.875”
  • Weight: 0.73kg (1.6 lbs)
  • Shipping Size: W x H x D: 102 x 76 x 165mm (4.00" x 3.00" x  6.50")
  • Shipping Weight: 0.87 kg (1.92 lbs)
  • Power: Passive, no power required
  • Warranty: Radial 3-year, transferable
