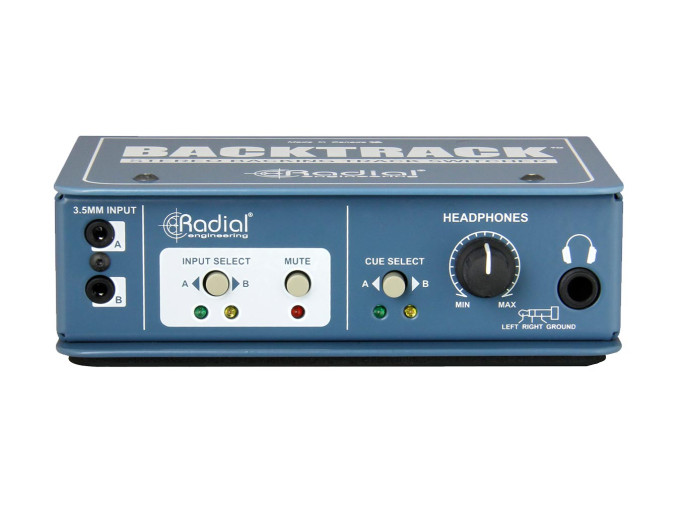

Radial EngineeringBacktrack Stereo Audio Switcher

Radial Engineering Backtrack

Easily swap between two different audio sources with Radial Engineering's Backtrack, a stereo audio switcher capable of cueing and handling audio through a multitude of ways. Backtrack switches between two different channels of audio in which each channel can handle balanced 1/4" TRS signals or even more commercial devices via the 3.5mm TRS stereo inputs. The master outputs offer clean transformer-isolated XLR signals with an additional ground lift for taking out ground loop noise and hum. Easily pre-listen to and cue up your switch via the headphone output with cue select and individual level control, and switch between the two signals remotely via Radial's proprietary JR-2 pedal which can be linked to multiple Backtracks for multiple switches. With an additional pair of monitor outputs for on-stage monitoring, the Backtrack from Radial Engineering is a versatile device that makes audio switching a breeze.

Backtrack Features

• Two-channel active DI and audio switcher
• Great for switching between multiple audio playback sources for live performances, presentations, and more
• Balanced 1/4" TRS inputs for both stereo channels
• Alternative 3.5mm stereo inputs on front channel
• 1/4" TRS monitor outputs
• XLR main outputs with ground lift switch
• Front-panel input select switch and audio mute
• Cue select switch for selecting "monitor" signal
• Headphone output with dedicated level control
• Remote control input via JR-2 switch (with remote output for linking compatible devices)
