Olivella Modular Signos

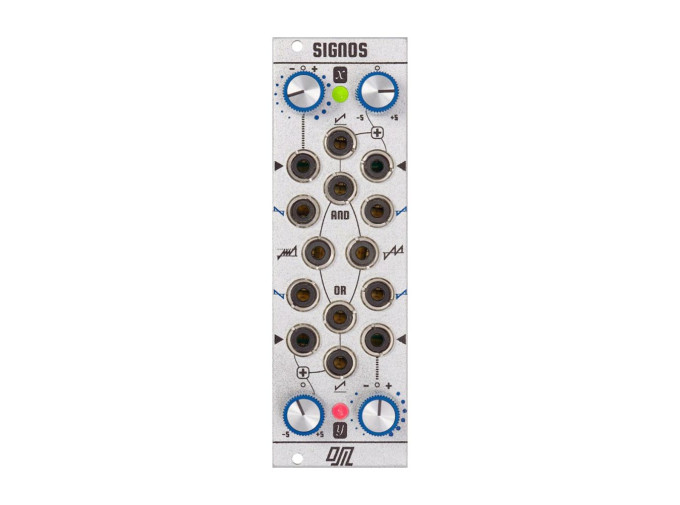

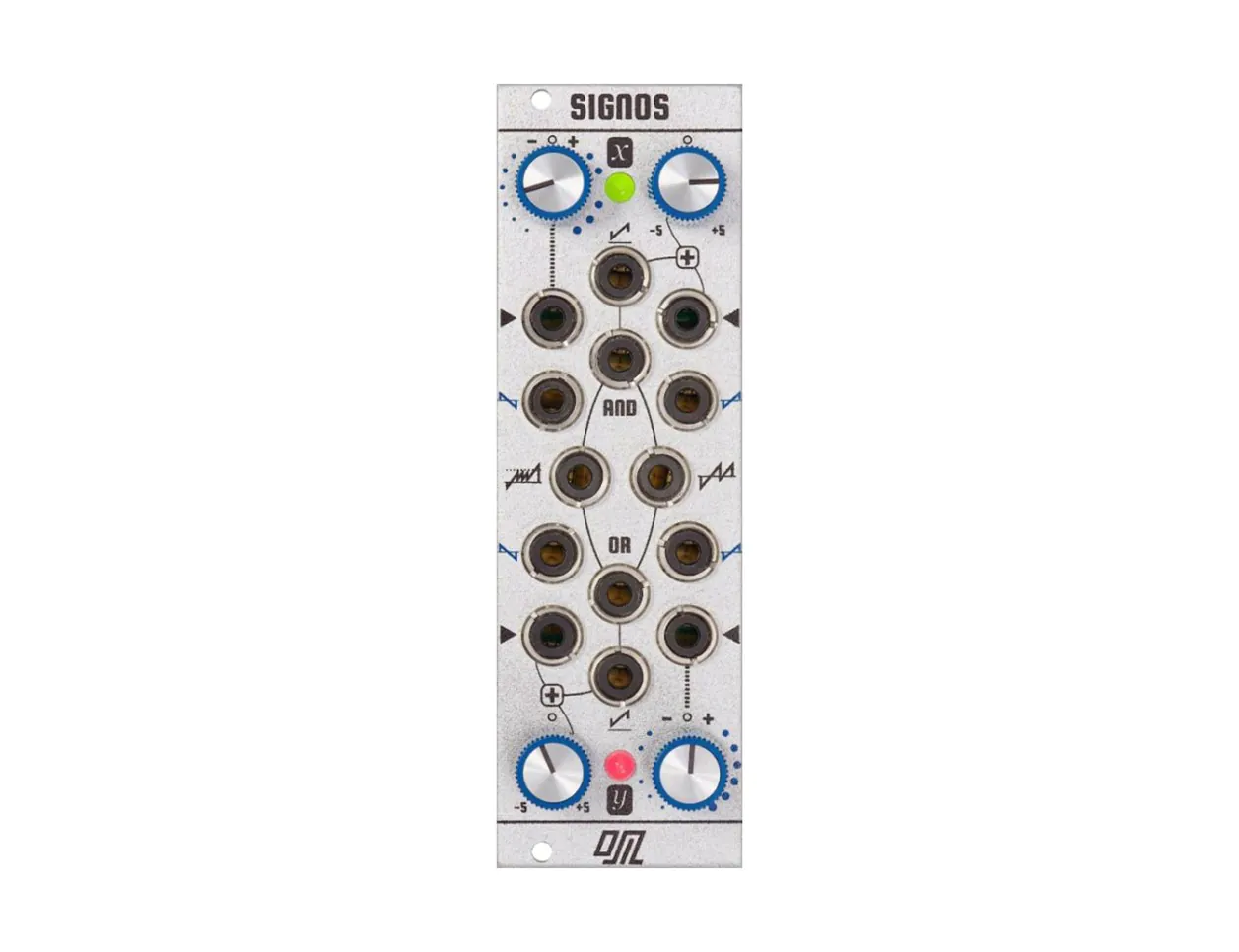

Signos by Olivella Modular is an entangled voltage processor and generator, suitable for everything from analog logic to waveshaping and beyond. Its two channels, X and Y, are both unipolar and bipolar VCAs with DC-coupled I/O, meaning that they can be used with both audio signals and control voltages. An internal offset voltage is available from each channel when no input is patched, and can serve as a handy utility for other sections of the module. In the middle are two analog logic blocks—not to be confused with boolean logic—which will output the minimum and maximum voltages from between the two channels. Additionally, each channel features two waveshapers: Mod which approximates the mathematical modulo function on a waveform, and Shift which will double the frequency of a sawtooth waveform and delightfully mangle other sources. Truly a patch programmable masterpiece, Signos is a dense but highly flexible patching block for your modular rig.

Signos Features

• Two channel signal processor and CV generator
• Unipolar and Bipolar VCAs per channel
• +/- 5V manual offset generator per channel
• Analog logic sections output minimum and maximum voltages per channel
• Modulo and shift waveshapers per channel
