ARC Function Generator

NANO Modules ARC

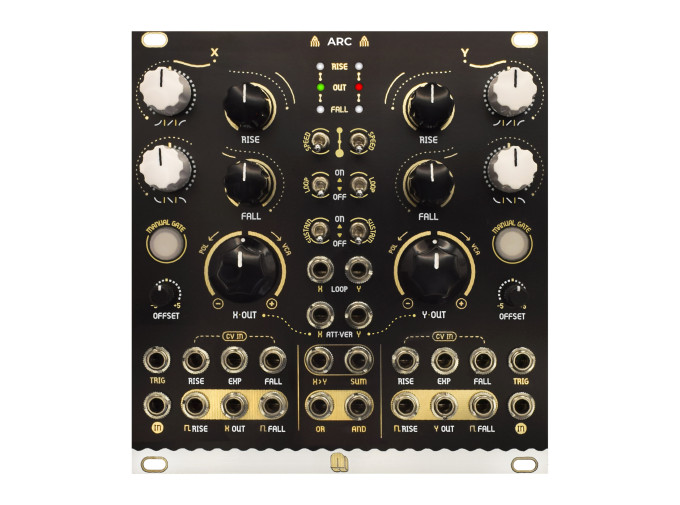

ARC from Nano Modules is a two-channel function generator that works as an LFO, envelope generator, slew limiter, VCO and a waveform modulator. Broken into an X and Y section, each features the same controls: a Rise and Fall with independent slope control for each, Attenuverter for diminishing the output or polarizing it, and several buttons and switches for manual gate, speed, loop, and sustain. Each side also has a robust offering of ins and outs with a trigger in, CV control for rise and fall times and a CV control for the exponential response, which can be used for pitch voltage. For outputs you have a main output with an end-of-rise and end-of-fall trigger output. In the center is a gang of shared logic outputs for X>Y, Sum, And, along with Or. For a fully featured function generator, the ARC from Nano is a great choice.

ARC Features

• Dual-channel function generator
• Rise and Fall adjustments with slope shape controls
• Looping switch for LFO/VCO duty
• Sustain switch for ASR or AD envelopes
• VCA/Polarizer for modulating waveforms
• Logic section with Sum, X>Y, And, OR outputs
• EOR, EOF, and main CV outputs
• +/-5v Offset for each side
• Input for slew
• Manual gate button
