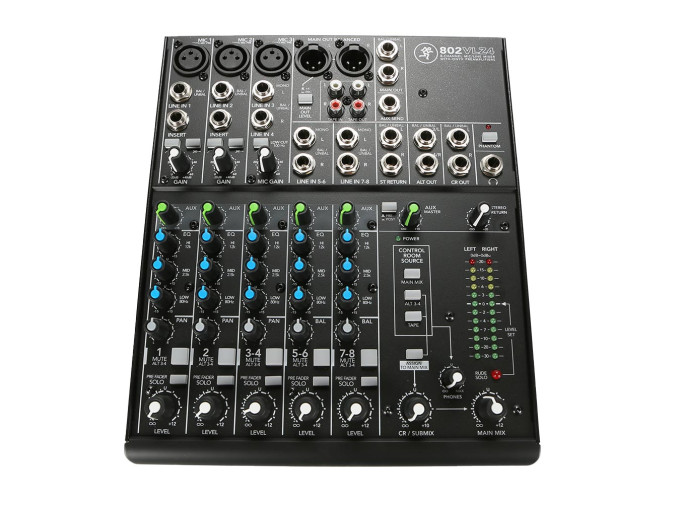

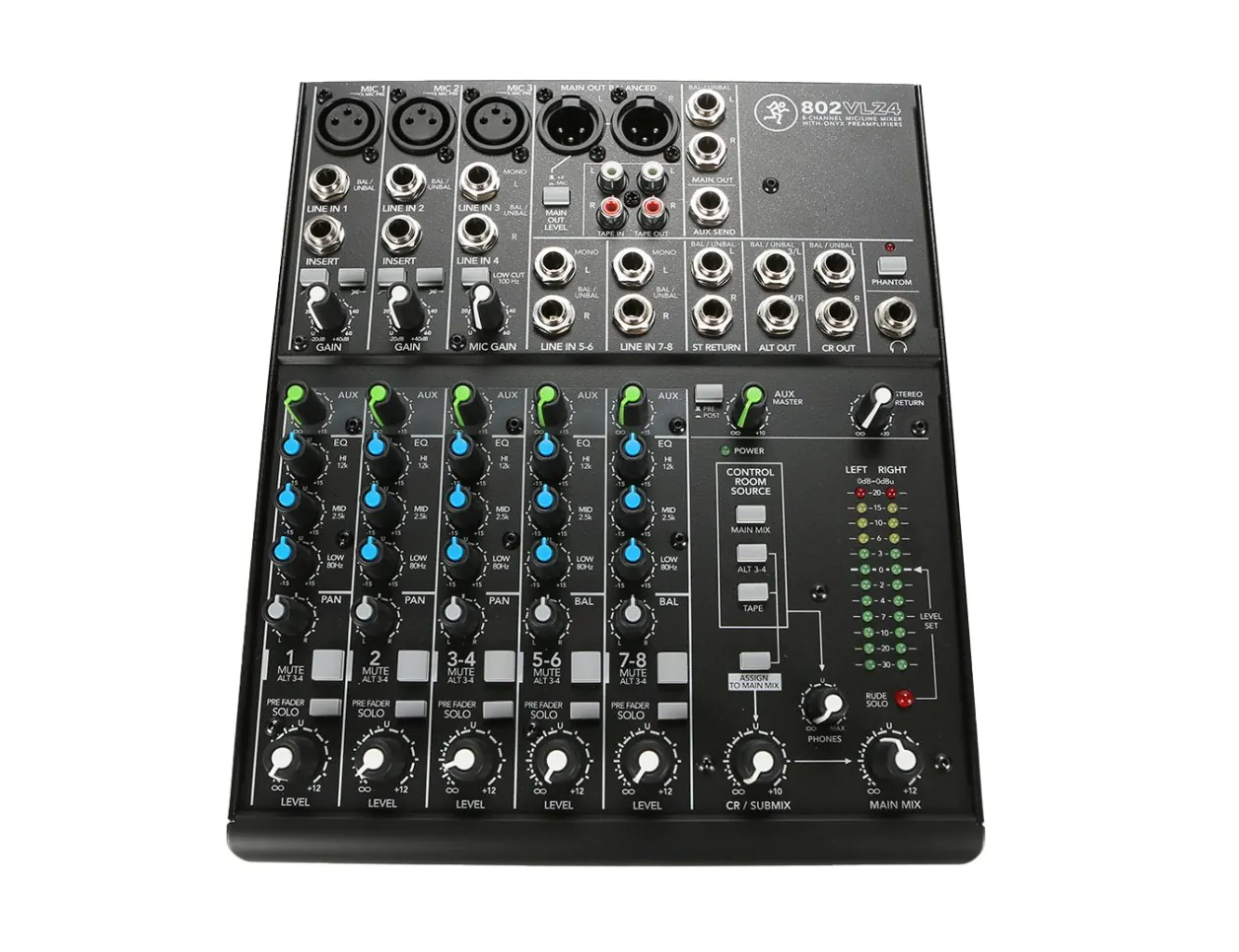

Mackie802VLZ4 8-Channel Mixer
- No Hassle
- Low Prices
The Mackie 802VLZ4 is a powerful 8-channel mixer that makes efficient use of its manufacturer’s pristine Onyx mic preamps for an unparalleled mixing experience. The unit was specifically designed to provide ample amounts of headroom and a low-noise performance while maintaining optimal signal integrity. It also provides several handy features, such as instrument inputs, Phantom Power, and level metering—all housed inside a rugged steel chassis!
- 8-channel mixer featuring Mackie signature high-headroom/low-noise design
- 3 boutique-quality Onyx mic preamps
- Ultra-wide 60dB gain range
- 128.5 dB dynamic range
- +22 dBu line input handling
- Extended frequency response
- Distortion under 0.0007% (20Hz – 50kHz)
- Improved RF rejection perfect for broadcast applications
- Phantom power for condenser mics
- 8 high-headroom line inputs
- Selectable instrument inputs on first two channels – no DI box needed
- 3-band EQ (80Hz, 2.5kHz, 12kHz)
- 18 dB/oct 100Hz low-cut filter on mic input channels
- Aux send, level, pan and PFL solo on each channel
- Stereo return for connecting FX processor or other stereo source
- ALT 3/4 stereo bus for added routing flexibility
- Control room / phones source matrix
- High-resolution 12-segment stereo meters
- Sealed rotary controls resist dust and grime
- “Built-Like-A-Tank” rugged steel chassis with powder-coat finish
- High-visibility, high-contrast controls deliver convenient “at-a-glance” visual feedback
- Type: Analog
- Channels: 8
- Inputs - Mic Preamps: 3 x XLR
- Inputs - Line: 2 x 1/4" (CH 1-2), 6 x 1/4" (CH 3-8 Stereo), 2 x RCA (Tape)
- Inputs - Other: 2 x RCA (tape)
- Outputs - Main: 2 x XLR, 2 x 1/4"
- Outputs - Direct: No Direct Outputs
- Outputs - Other: 2 x RCA (Tape), 2 x 1/4" (Alt), 2 x 1/4" (Control Room)
- Headphones: 1 x 1/4"
- Send/Return I/O: 1 x 1/4" (Send), 2 x 1/4" (Return)
- Phantom Power: 3 (CH 1-3)
- EQ Bands: 3-band
- Aux Sends: 1, Pre
- Busses/Groups: Alt 3-4
- Faders: No Faders
- Channel Inserts: Yes (CH 1-2)
- Effects: No effects
- Talkback: No talkback
- Computer Connectivity: No computer connectivity
- Rackmountable: No
- Height: 1.8"
- Width: 8.9"
- Depth: 10.7"
- Weight: 5.5 lbs.
- Manufacturer Part Number: 2040767-00
