Maag AudioEQ4 500 Series 6-Band Equalizer


In Stock Available immediately!
  • Free Shipping
  • No Hassle Returns
    No Hassle
  • Warranty
  • Low Price Guarantee'
    Low Prices

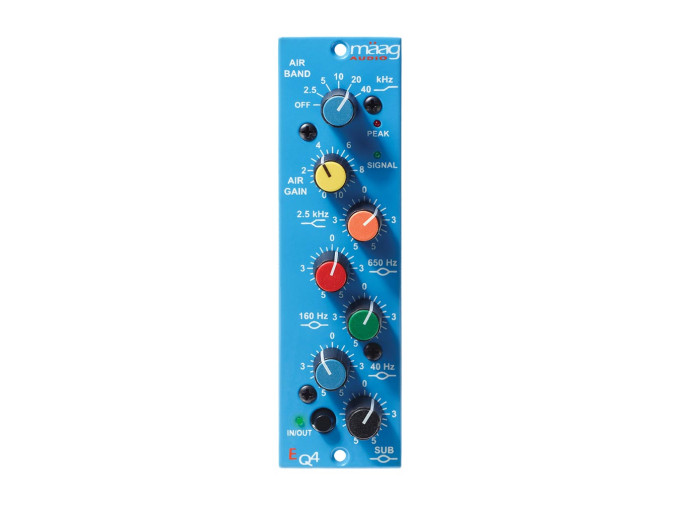

Maag Audio EQ4

Maag Audio's EQ4 500 Series Module is a no-fuss, six band EQ featuring their highly regarded Air Band with five additional boost or cut controls at fixed frequencies, making it ideal for quick, broad EQ decisions in the midst of tracking. Providing minimal phase shifting for highly transparent equalization, each of the five fixed frequency bands may be reduced by -4.5dB or boosted to +15dB, and are located at Sub (10), 40, 160, 650, and 2500 kHz. The EQ4 also contains Maag Audio's unique Air Band high-shelf boost, providing up to +20dB of gain for frequencies at 2.5, 5, 10, 20, and 40 kHz. The entire EQ can be bypassed at the press of a button for a quick A/B comparison of the mix, and all controls are detented for fast and accurate recall. Anyone in need of a straightforward, transparent EQ for their 500 Series collect should seriously consider the Maag Audio EQ4.

EQ4 Features

  • Single channel, 6 band EQ 500 series module
  • Four fixed bell boost/cut controls at 10, 40, 160, and 650 Hz
  • High shelf boost/cut at 2.5 kHz
  • Air Band high shelf boost at 2.5, 5, 10, 20, and 40 kHz
  • Bypass button
  • All controls are stepped for precise settings recall
  • Input Impedance: 48 kOhms
  • Output Impedance: 50 Ohms
