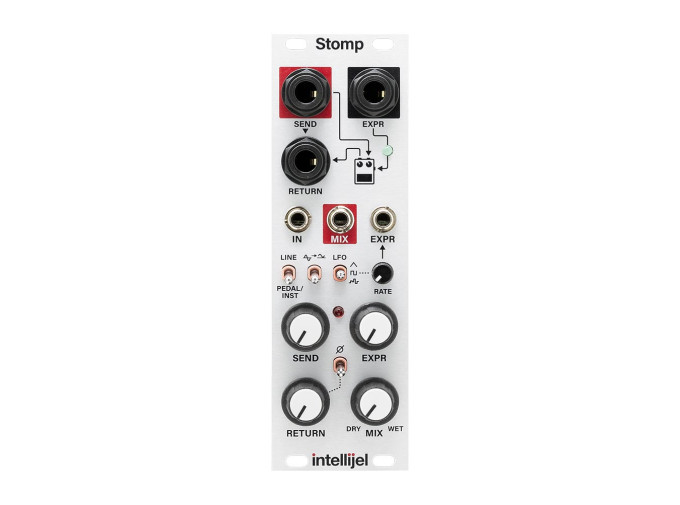

Intellijel Designs Stomp

Bridging the gap between pedals and modular gear, Intellijel's Stomp is a handy utility module for using external effects with your Eurorack system. Stomp works in both directions—send sounds sources from your modular rig to and from external effects, or use Stomp to treat your entire synthesizer as part of your effects signal chain. Neutrik 1/4" connector yield quality connection points for your pedals, as well as an optional expression output to route control voltages into your connected pedals. A courtesy LFO is on hand with triangle, square, and random waveforms, but an external EXPR input allows you to use any CV source as an expression controller. No longer separate worlds, Stomp is just the thing you need to join effects pedals and Eurorack into beautfiul sonic harmony.

Stomp Features

  • External pedal interface module for Eurorack modular systems
  • Neutrik 1/4" TS connectors
  • Send and Return levels for pedals
  • Invert phase switch on Return
  • Return jack accepts high impedance sources, including instruments with piezo pickups
  • Dry/Wet Mix control on modular level output
  • Expression output for routing CV into pedals
  • Onboard LFO with rate, polarity, and waveform selection
  • External EXPR input for routing any CV into pedals
  • Eurorack module
  • Width: 8hp
  • Depth: 35mm
  • Current draw: 47mA @ +12V, 13m@ @ -12V
