InstruoCuïr Output Module

Item#
N13-05566
4hp
$259.00

Backorder Reserve your order today!

Out of Stock

We're awaiting our next batch of this item. Pre-order to reserve your place in line and we'll fulfill your order as soon as we receive our shipment
  • Free Shipping
    Free
    Shipping
  • No Hassle Returns
    No Hassle
    Returns
  • Warranty
    Extended
    Warranty
  • Low Price Guarantee'
    Low Prices
    Guaranteed

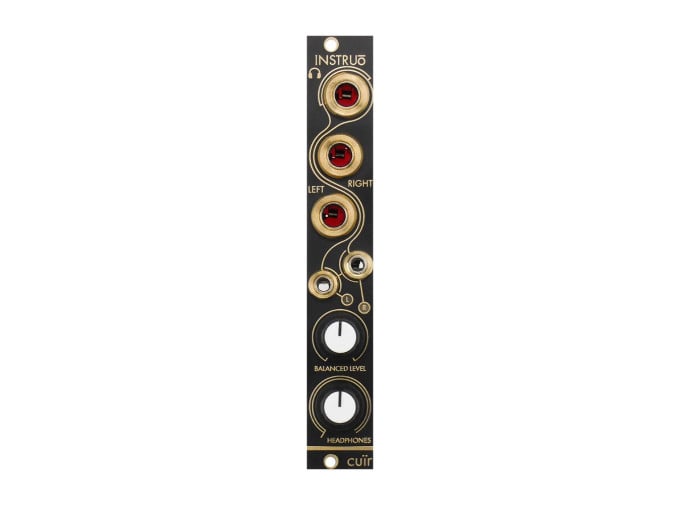

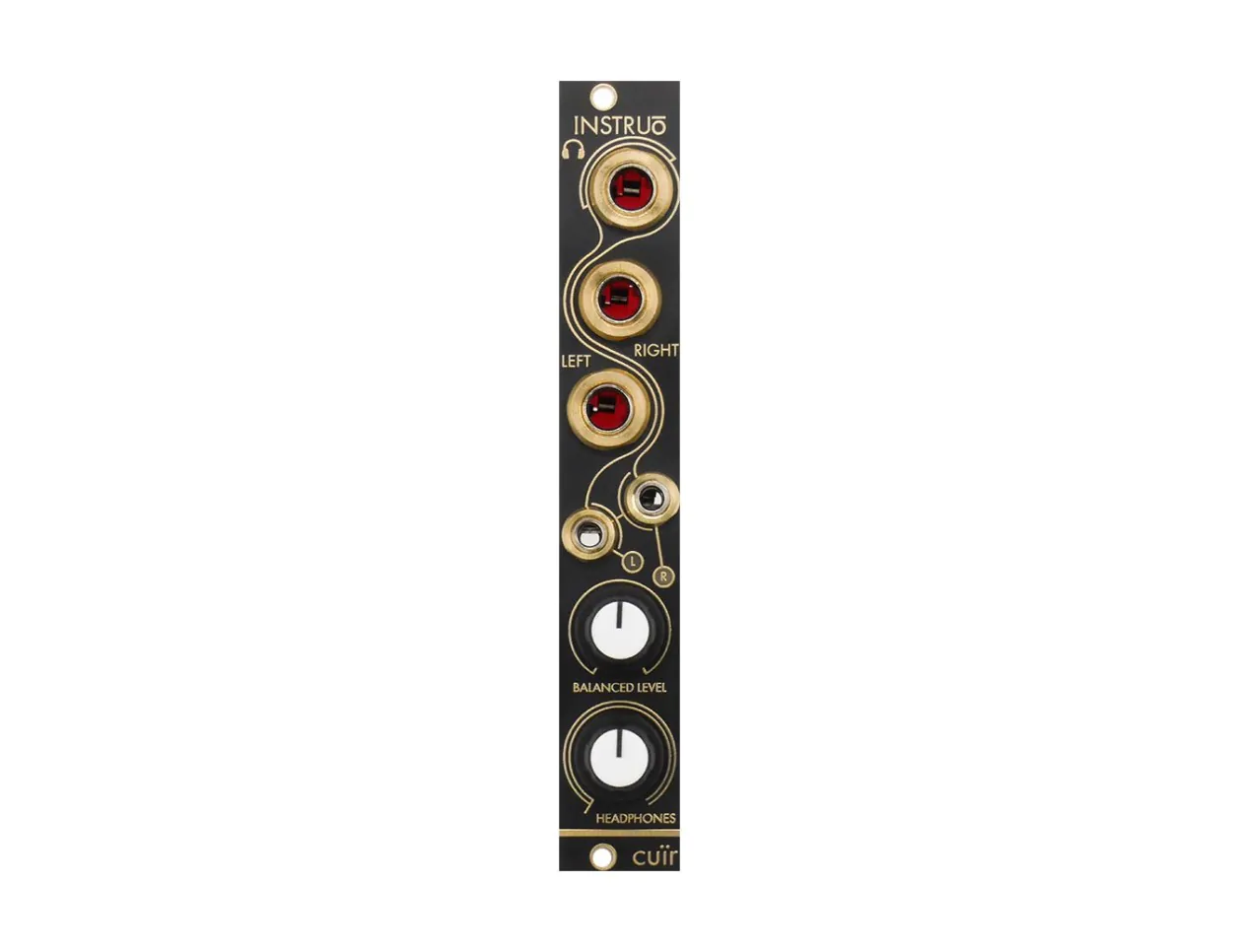

Instruo Cuïr

Output your final mono or stereo Eurorack signals to professional and consumer-grade audio equipment with Instruo's Cuïr, a level conversion and output module great for live performance and recording. The two Eurorack 1/8" inputs are optimized into individual balanced 1/4" outputs, of which there are two included Instruo branded balanced cables to complement the module. If you find yourself needing to run long distances, Cuïr sports low impedance, high-quality differential line drivers for the most equal experience with both transformer and transformerless inputs at any cable length. With the inclusion of a headphone output with its own dedicated level control for monitoring separately, the Cuïr is a stellar and compact output module for capturing and monitoring Eurorack signals in a more pro-audio-friendly manner.

Cuïr Features

  • Stereo output module
  • Two Eurorack 1/8" inputs, two balanced TRS 1/4" outputs
  • One 1/4" stereo headphone output with dedicated level control
  • Master balanced level control
  • Two 150cm-length balanced TRS 1/4" cables
  • Eurorack module
  • Width: 4hp
  • Depth: 30mm
  • Current draw: 30mA @ +12V, 30mA @ -12V
SignalRelated ArticlesSuperbooth 2022 CoverageNew Synthesiers, Drum Machines, Eurorack Modules, and More
Product Demo Videos
Instruō - cuïr Overview
cuïr is a highly compact module designed to provide optimized output signals for interfacing a modular system with professional and consumer audio equipment.

In addition to the pair of balanced TRS outputs there is a high quality headphone driver with its own independent level control.

The stereo balanced outputs feature high quality low impedance differential line drivers. These are designed to drive long cable lengths and operate equally well with balanced transformer or transformerless inputs.

A pair of high quality balanced 1/4" cables are included with the cuïr.
These cables are braided, 150cm long, shielded and feature gold plated TRS contacts. Using these cables (or any quality balanced TRS cable) the cuïr can be used to connect modular systems directly to mixing consoles, microphone preamps or any other pieces of professional outboard audio equipment.

• Stereo modular level to 1/4” balanced line output
• High quality 150cm balanced cables included
• Dedicated headphone driver
