InstruoCruïnn Analog Stereo Oscillator + Expander
Item#
N13-06002
14hp
$409.00
- STAFF PICK
-
Free
Shipping -
No Hassle
Returns -
Extended
Warranty -
Low Prices
Guaranteed

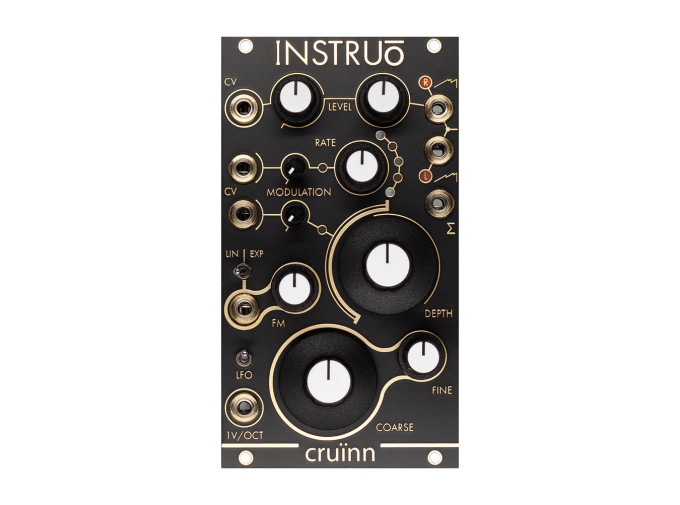

Instruo Cruïnn
The Cruïnn from Instruō is an analog, stereo, through-zero phase modulated oscillator that creates rich, dense textures thanks to its sawtooth core with five parallel variants. To create the luscious pads and rich stereo sound, discrete internal triangle LFOs are applied to the phase modulation of each sawtooth variant. External control over the depth and rate of these LFOs is available for extended sound design. An included passive expander breaks out each of the six waveforms and gives you patch points to displace the phase with whatever CV source you'd like. For thick, beautiful, stereo sounds the Cruïnn from Instruō is the oscillator you've been looking for.
Cruïnn Features
- Stereo analog oscillator
- Six phase-displaced sawtooth variants
- 5 Internal LFOs for modulation of displacement
- Global rate and depth controls
- Built-in stereo VCA
- LInear and exponential FM
- Can dip to LFO rates
- 4hp Expansion module included which breaks out all waveforms and offers CV phase displacement patch points
- Stereo and summed outputs
- Eurorack module
- Width: 14hp
- Depth: 27mm
- Current draw: 180mA @+12v, 180mA @-12v
Product Demo Videos
Instruō - cruïnn Overview
**This video heavily features stereo patch examples. For best results use both ears**
The Instruō cruïnn is an analogue stereo oscillator that utilises through-zero phase modulation to create deep, animated textures.
On top of its single sawtooth oscillator core, cruïnn produces five additional parallel phase-displaced sawtooth variants – each controlled by their own discrete internal triangle waveform LFO. With both on-board and external control over the LFO rates and modulation depths, cruïnn effortlessly creates, super-super-super-super-super saws, lush pads, phasey basses, and chaotic effects.
With cruïnn’s included passive 4 HP Expander, access to all six waveforms are available. Add to that the ability to individually displace the phase of each waveform via CV and cruïnn becomes an amorphous swarm of harmonically rich sawtooths.
The Instruō cruïnn is an analogue stereo oscillator that utilises through-zero phase modulation to create deep, animated textures.
On top of its single sawtooth oscillator core, cruïnn produces five additional parallel phase-displaced sawtooth variants – each controlled by their own discrete internal triangle waveform LFO. With both on-board and external control over the LFO rates and modulation depths, cruïnn effortlessly creates, super-super-super-super-super saws, lush pads, phasey basses, and chaotic effects.
With cruïnn’s included passive 4 HP Expander, access to all six waveforms are available. Add to that the ability to individually displace the phase of each waveform via CV and cruïnn becomes an amorphous swarm of harmonically rich sawtooths.
