Future Retro MIDI Bus

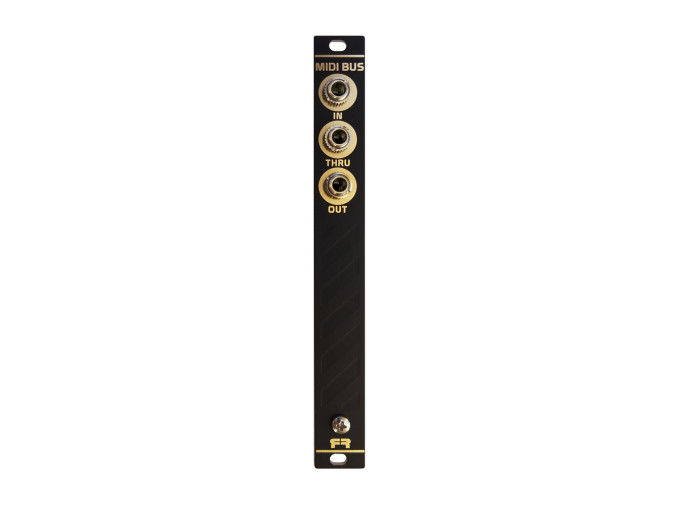

MIDI Bus is a buffered MIDI interface module in the Eurorack format specifically designed to expand the feature set of the Future Retro TRAX! sequencer. MIDI In/Out/Thru connections are easily accessible on the front of the panel via 3.5mm jacks. Three 3.5mm to 5-pin DIN MIDI adapter cables are included in the package. These cables conform to the TRS MIDI B specification class, additionally supported by Arturia, 1010 Music, and Novation devices.

The included special MIDI Bus power cable is recommended to be used for connecting the module to the Eurorack busboard as it was designed to prevent interference with other signals in your system. Additionally, Flying Bus cable should be used when connecting MIDI Bus to TRAX! sequencer.

MIDI Bus Features

  • 3.5mm TRS MIDI B specification class connections
  • Includes 3 3.5mm to 5-pin DIN MIDI adapters in the package
  • MIDI Bus power cable included
  • Allows only a single device in your system to send and transmit MIDI via MIDI Bus power cable
  • Allows multiple modules to share MIDI data with one another, as well as receive the proper power from the system via Flying Bus power cable
  • Eurorack module
  • Width: 3hp
  • Depth: 25.40mm
  • Current draw: 17mA @ +12V, 0mA @ -12V
