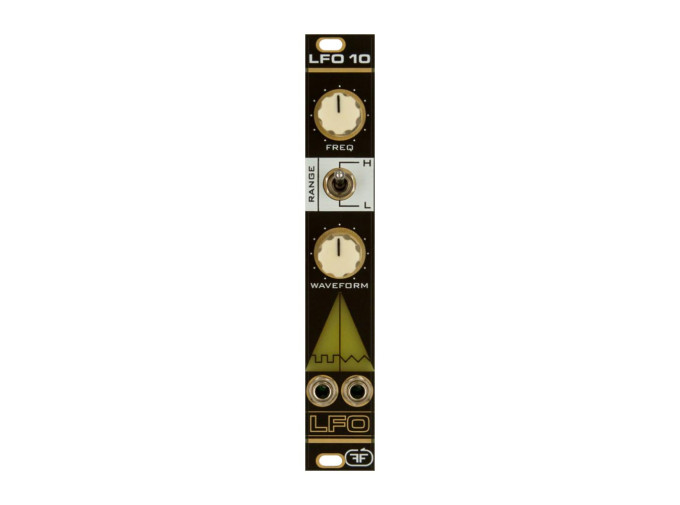

LFO-10 Low Frequency Oscillator

Feedback Modules LFO-10

LFO-10 from Feedback Modules is a compact, simple LFO based on the classic MS-10 LFO with a very handsome light display. With two outputs, one for the Square and one for the Triangle, the triangular LED display will show the state of the modulating waveform. Using the Waveform knob, you can also morph the Square from a 5% pulse to a 95% pulse while the Triangle goes from a Saw to Triangle to Ramp. Two range settings can get you to speeds as slow as 55s/18mHz or as fast as 42ms/24Hz for exceptional control. When looking for simple modulating modules, the LFO-10 from Feedback Modules is an exceptional choice.

LFO-10 Features

• LFO based on the MS-10
• 2x Waveform outputs: Pulse and Triangle
• Pulse voltage is 0–10v
• Triangle voltage is -5v–+5v
• Waveform knob morphs the waveshapes
• High range: 0.63Hz (1.6s)–24Hz (42ms)
• Low range: 18mHz (55s)–0.7Hz (1.4s)
