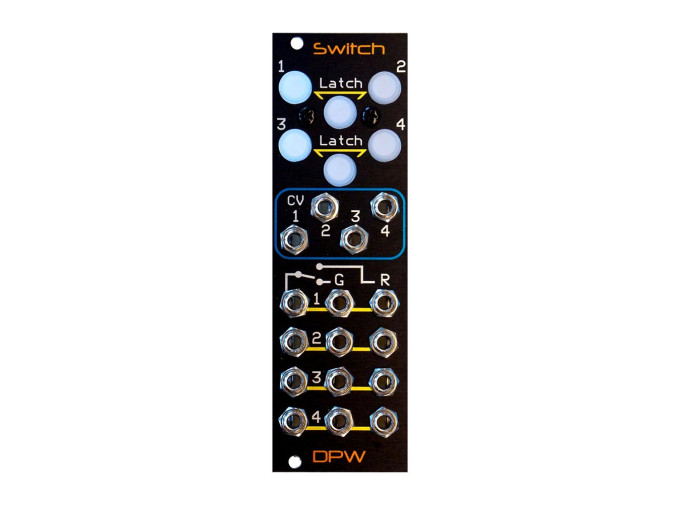

DPW DesignSW-1 Quad Bidirectional Switch

DPW Design SW-1

Easily switch your signal path with the SW-1, a four channel, bi-directional, button-controlled switch from DPW Designs. With the ability to function in a momentary or latch fashion, the SQ-1 is exceptionally playable and its ergonomic design makes it easy to work with stereo channels. Each of the four channels can go from 1-2 or 2-1 and features CV control for switching, which can accept high rates for interesting waveshaping possibilities. For patches of any size, this can provide dramatic changes, subtle shifts, and allow for completely new movements to be transitioned to on-the-fly. Slide the glowing, button-adorned SW-1 into your case for expanded versatility.

SW-1 Features

• 4-Channel bi-directional switch
• Each channel is a 1–2 or 2–1 switch
• Red/green push buttons correspond to R and G for each channel
• Latch buttons switch from momentary to latching behavior
• Works well in stereo
• CV inputs for each channel triggers the switch and accepts audio rate
