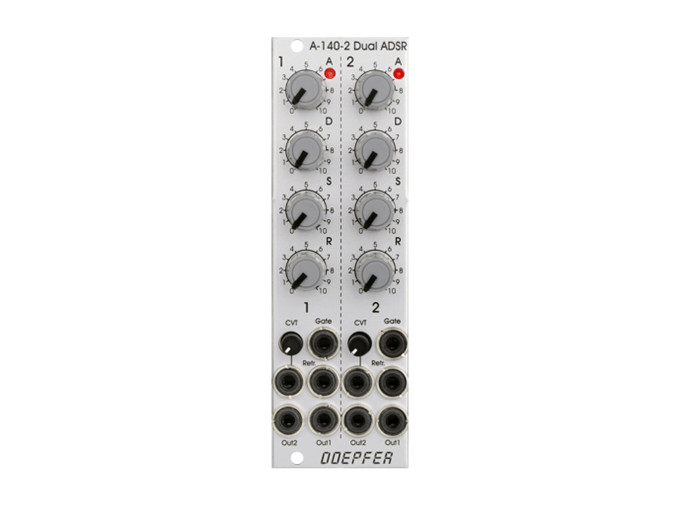

A-140-2 Dual Mini ADSR Envelope Generator

Doepfer A-140-2

The A-140-2 from Doepfer features two voltage-controlled ADSR-style envelopes in a mere 8hp. In addition to straightforward envelope controls, the A-140-2 is deeply configurable, with jumpers determining whether its CV inputs control Decay only, Decay and Release, or Attack, Decay, and Release simultaneously. The A-140-2 also features two envelope outputs per channel, one of which can be switched between normal and inverse.

A-140-2 Features

• Dual VCADSR with per-stage knob controls
• LED indicator per channel
• Gate, Retrigger, and CV Time input per channel
• Two envelope outputs per side
• CVT and Out2 behavior configurable via internal jumpers
• Output level: 0-10V
