A-150-8 Octal Manual / Voltage Controlled Programmable Switches

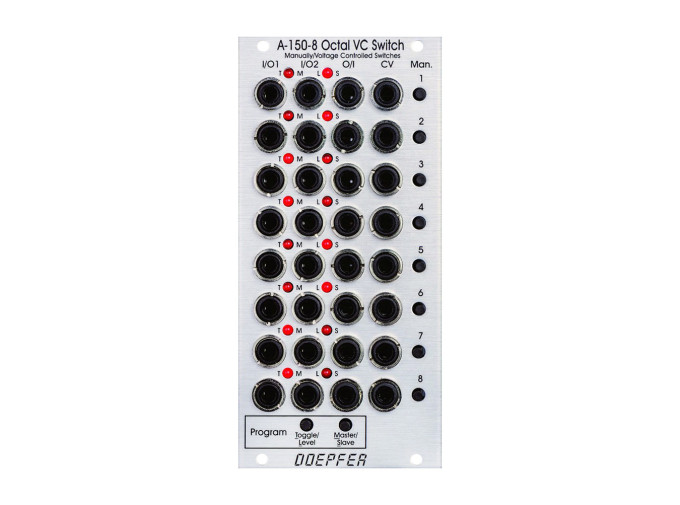

Doepfer A-150-8

The A-150-8 from Doepfer is an incredibly useful and versatile utility module. It provides 8 switching channels, each of which alternately connect two inputs or outputs to a common input/output. These stages can be switched using control voltage or with corresponding manual buttons. In addition, multiple channels can be controlled via a single “master” channel’s switch CV input, allowing for dynamic patch switching.

A-150-8 Features

• 8 configurable switching channels
• Master/Slave modes
• Switches may be toggled by rising-edge CV or by Gate
• Manual switch toggle button per channel
• Protection buffers between inputs
