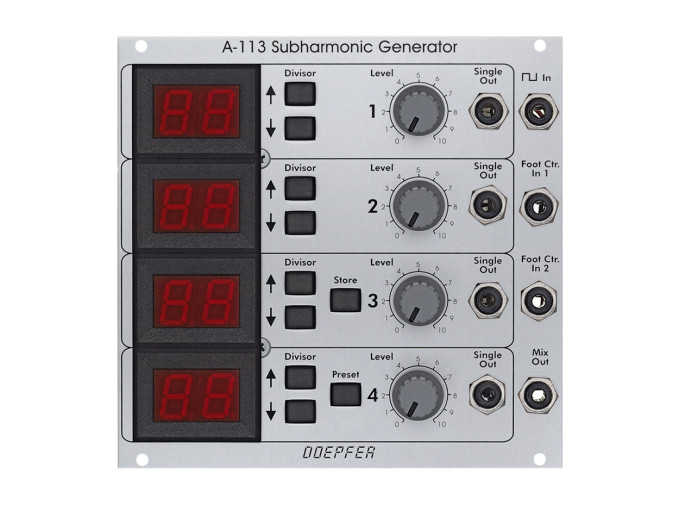

A-113 Subharmonic Generator

Doepfer A-113

Module A-113 is a subharmonic generator inspired by the Mixtur Trautonium. It uses the signal present at its input to produce a sawtooth wave with a frequency determined by the master frequency, itself a product of a division in the range of 1 - 24. The resulting subharmonics are available per channel as well as a cumulative mix (with the ability to alter the subharmonic levels). Additional features include dual gate inputs for selecting between different frequency division settings, and a mix memory containing 50 presets.

A-113 Features

• Four digital frequency dividers with 2-digit display and up/down adjustment buttons
• Rectangle/sawtooh converter
• Attenuator governing the overall subharmonic amount in the mix output
• 2 gate inputs for switching between mixtures
