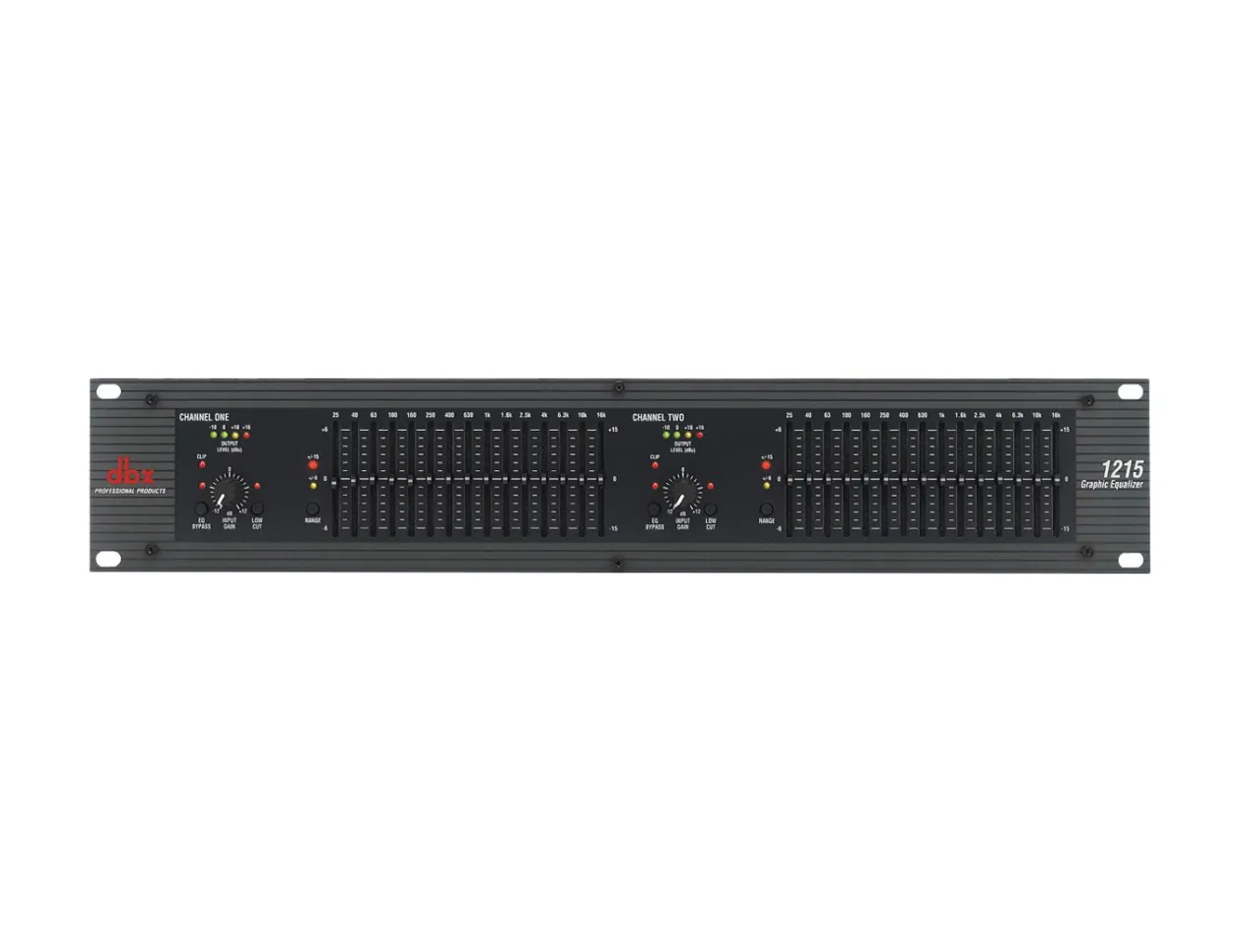

1215 Dual 15-Band Graphic Equalizer

dbx 1215

The dbx 1215 is a dual channel 15-band graphic EQ with switchable boost/cut ranges, that helps sculpt your sound to perfection. The 15 bands are divided into 2/3 octave intervals and feature 45mm faders for adjustment and visual representation of the EQ levels. The boost/cut ranges are switchable between +/-6dB or +/-15dB, allowing you to dial in the perfect amount of EQing. In addition to the 15 EQ bands, a switchable 18dB/oct 40Hz Bessel low cut filter is included for additional filtering.

The inputs and outputs include barrier strip, XLR, and TRS that are RF filtered and feature +/-12dB of input gain range. The 1215 offers low-noise performance, featuring a signal to noise ratio of 90dB and uses high quality parts throughout. The chassis/signal ground lift capability helps eliminate noise and hum in the signal chain. The 1215 is a great sounding EQ with simple interface but advanced features that is a perfect addition to your studio or live sound setup.

1215 Features

• Dual 15-band graphic EQ
• 2/3 octave filter intervals
• selectable +/-6dB or +/-15dB boost/cut for EQ
• Electronically balanced/unbalanced inputs and outputs on XLR, TRS, and barrier strip with +/-12dB of gain
• Ground lift for eliminating ground hum
• 18dB 40Hz low cut filter
• Two second power up delay
