BAE

1272 Mic Pre

SKU
N13-BAE-1272mod
No Longer Available:  Contact us for a recommendation.

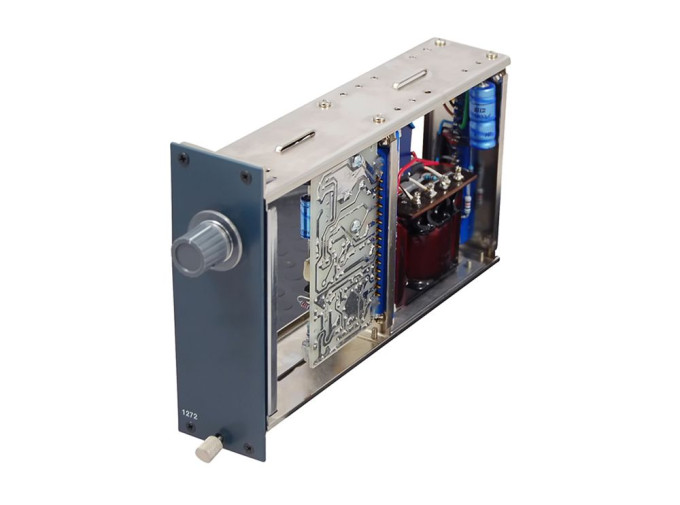

1272 Mic Pre

BAE 1272

The 1272 module made by BAE is built to specifications to be used in original Neve® consoles.

1272 Features

  • Built to specifications for Neve® consoles
  • The same hand-wired construction that BAE is known for

Product Details

  • Frequency Response: +/- 0.5dB 20Hz-20kHz
  • Frequency Response: +/- 0.5dB 20Hz-20kHz
  • Mic Input Impedance : 1200 or 300 ohms
  • Output Impedance: 50 ohms
  • Common Mode Rejection Ratio: 100dB min @ 60Hz
  • Maximum Output Level: +27.4 dBu @ 600Ω
  • Power Requirements: 80mA @24VDC
  • Gain: 39dB External Gain Optional
  • Equivalent Input Noise: Better than -85dBu
  • Weight: 4.25 LBS / 1.93 KG
  • Dimensions (in Inches): 5.25W x  1.8L x 8.5DÂ
