Avedis AudioMA5 500-Series Class A Microphone Preamp

Item#
N13-05198
$850.00

In Stock Available immediately!
  • Free Shipping
    Free
    Shipping
  • No Hassle Returns
    No Hassle
    Returns
  • Warranty
    Extended
    Warranty
  • Low Price Guarantee'
    Low Prices
    Guaranteed

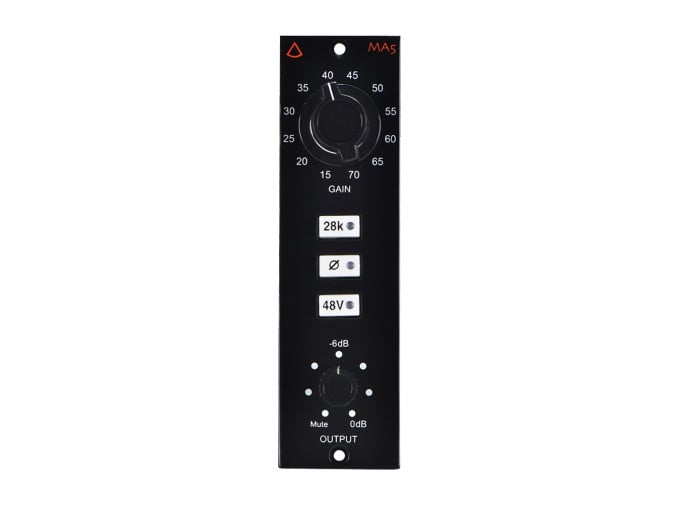

Avedis Audio MA5 500-Series Class A Microphone Preamp

Avedis Audio's MA5 is a 500 series preamp that is modeled after classic 70's British consoles, but built with modern construction that's designed to last. Over a decade in production, the MA5 has stood the test of time and finds itself in studios all around the world. With good reason, the simple controls—Gain and Outputs—coupled with a few choice switches means you can spend more time listening to the sound and less time deciphering the front panel. Simple controls belie the complex circuitry and premium hardware contained within the MA5. A UK-made Carhill/St. Ives input transformer and custom made Jensen output transformer ensures great sound quality. The Gain rotary knob is stepped in 5dB increments and an Output level lets you fine tune the volume. Add reliability and high fidelity with the MA5 from Avedis Audio.

MA5 Features

  • 500-Series mic preamp modeled off 70s-era consoles
  • 5dB Stepped gain knob
  • Carhill/St.Ives input transformer
  • Custom Jensen output transformer
  • 28kHz switch for boosting highs
  • Phase invert switch
  • 48v Phantom power switch
  • Direct coupled, single-ended Class A amplifier
  • Dimensions: 1.5″ x 5.25″
  • Frequency Response: <10Hz to -3dB at 67kHz
  • Input Impedance: ≅1250 ohms
  • Output Impedance: <75 ohms, bias variable
  • Common Mode: Rejection Ratio >100dB min @ 60Hz
  • Maximum Output Level: +32.2 dBu @ 100KΩ, +27 dBu @ 600Ω bias variable
  • Power Requirements: ±16 vdc @ 75mA per rail
  • Gain Voltage: 0 to 33.4 Volts
  • Gain dB: 0 to 71.2 dB
  • Equivalent Input Noise: −110 dBu, Unweighted 300kHz bandwidth
  • Weight 2.7 lbs / 1.13kg
