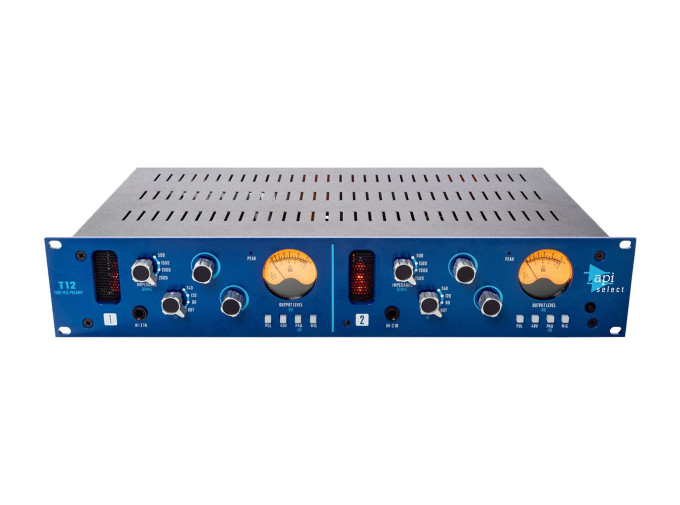

API T12 Tube Microphone Preamp

API Select T12 is a dual channel Class-A microphone preamplifier built with dual-triode vacuum tubes representing a new take on the classic API sound. At the input stage is API's proprietary AP2516 transformer with a custom API transformer on the output stage as well, both using vacuum tubes. Each channel features a classic, backlit VU meter, variable microphone impedance switch, three-position low cut switch, and dedicated controls for gain and level with the intention of delivering a wide range of preamp options, including stereo operation. Capable of handling a wide array of production applications, the API Select T12 delivers API's famous warmth, punch, and clarity with the power of vacuum tubes.

Select T12 Features

  • All-tube Class-A mic preamp
  • Audio circuit uses 12AT7WC & 12BH7 dual-triode vacuum tubes
  • Switchable Mic/Hi-Z Inputs
  • Variable mic input impedance
  • 48v Phantom Power
  • High-impedance, unbalanced 1/4" Instrument Input
  • -20dB Input Pad
  • 11-Step Detented Preamp Gain Control and Output Trim
  • 3 Fixed Frequency Low-Cut Filter
  • XLR & 1/4" TRS Output Connections
  • API 5 Year Warranty
  • Inputs: 2x XLR Balanced & 1/4" Unbalanced
  • Outputs: 2x XLR & 1/4" TRS Balanced Jacks
  • Input Impedance: Hi-Z: 500 kOhm, Microphone: Variable 500, 1500, 2000, and 2500 Ohm
  • Output Impedance: 75 Ohms, capable of driving 600 Ohm
  • Loads
  • Maximum Input Level: +24 dBu (with Pad Engaged)
  • Gain Range: 0dB to +70dB
  • Maximum Output Level: + 24dBu
  • SNR: 98dB
  • Frequency Response: 20Hz - 30kHz (+0dB / -1dB)
  • Power Consumption: 40 Watts
  • Dimensions: 2U 19" Rack, 19 x 3.5 12 in
  • Weight: 14 lbs
