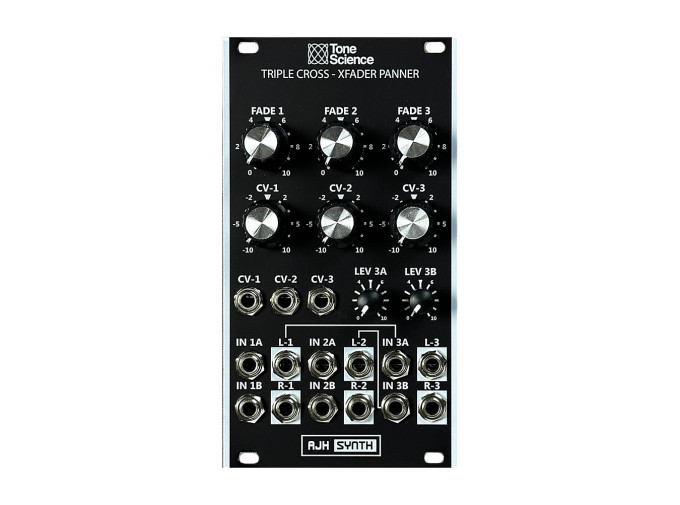

AJH SynthTriple Cross Crossfader + Panner

AJH Synth Triple Cross

Inspired by a vintage Serge patch from renowned musician Ian Boddy (aka Tone Science), the Triple Cross from AJH Synth is a three-channel crossfader, VCA, and panning module. Triple Cross is simple in concept, but can generate tons of complexity—you can utilize each channel in four different ways: as a Linear VCA, Crossfader (two mono in, one mono out), Panner (one in, two out), or as a Crossfader and Reverse Panner combined (two in, two out). Channels 1 and 2 are normalled to the inputs of Channel 3, giving you more control and more direct access to complex signal routing. Of course, the Fade parameter is voltage-controllable, and lets you create interesting organic movement, whether for panning, mixing, or even at audio rate for generating new tones.

AJH's Triple Cross is an incredible utility and a great addition to any rack that needs to blend tones together in the stereo field.

Triple Cross Features

• Three-channel crossfader and panning module
• Two inputs and outputs for each channel
• CV Control over Fade
• Channels 1 & 2 normalled to Channel 3
• DC-coupled for use with CV or audio rate signals
• Designed in collaboration with Tone Science/Ian Boddy
