Abstract DataADE-60 4x4 Mix Utility

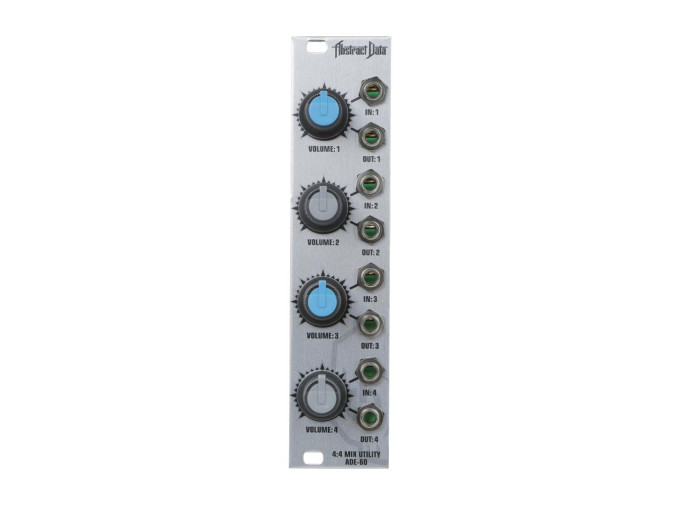

Abstract Data ADE-60

Abstract Data’s ADE-60 is a multifarious audio and CV utility module that can function as a single 4:1 mixer, four individual sections, or any combination therein. Each channel provides up to 2x gain, CV/biasing, and attenuversion, giving users an array of possibilities in a mere 6hp.

ADE-60 Features

• Inherently configurable mixing and CV utility module
• per channel gain, attenuversion, and CV biasing
• Configurable as a traditional 4:1 summing mixer, 4 1:1 I/O attenuators, or separate CV sources
• Gain and attenuversion settings in tandem with CV biasing can achieve the following voltage ranges: 0-5V; 0-10V; +/-5V; +/-10V
• Works with both CV and audio signals
• Reverse power protected
