Abstract DataADE-50 3x VCA

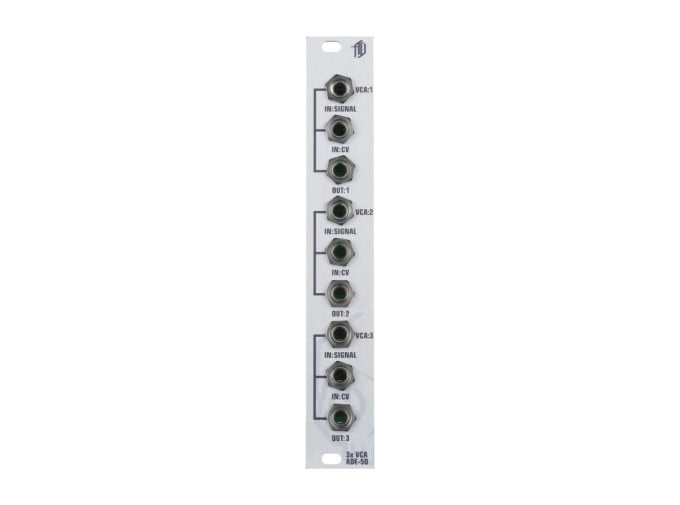

Abstract Data ADE-50

The ADE-50 provides 3 all-analogue voltage controlled amplifiers based on a modern operational transconductance amplifier design.

The VCAs are designed to provide a good balance between the performance and specification of modern ‘on-chip’ VCAs and the character and musicality of classic analogue designs.

The OTA core of each VCA is fully discrete - it is built from only resistors, capacitors and transistors - however, the CV conditioning, audio input and output stages are built using high-quality op-amps giving the best balance between musicality, character and performance.

The ADE-50 provides a good signal-to-noise ratio, linearity, attenuation, an output level at unity gain at 5V CV input, minimal CV ‘bleed’ and minimal output offset/bias.

ADE-50 Features

• Fully discrete
• 3 all-analogue voltage controlled amplifiers
• 40 mm deep
