4MSMetaAIO Expander for MetaModule

4MS MetaAIO

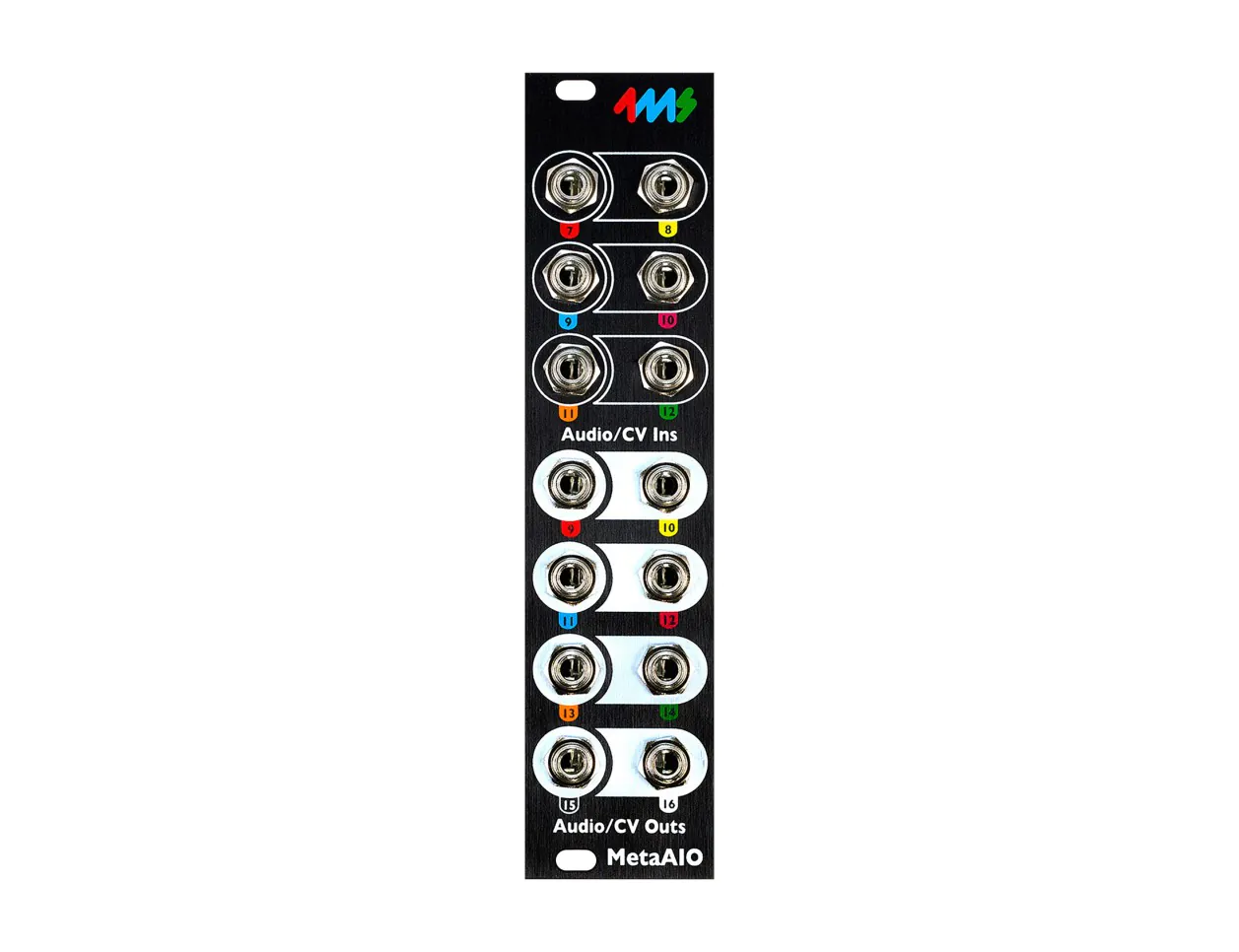

The MetaModule Audio Expander, or MetaAIO, is a compact expansion module for the 4MS MetaModule, adding even more audio or CV inputs and outputs for use with any MetaModule VCV patch. While the MetaModule offers a standalone virtual modular system within your larger hardware rack, its finite inputs and outputs limit interaction with large virtual patches. The MetaAIO offers an additional six audio or CV inputs and eight outputs, dramatically increasing patch possibilities.

Just like the MetaModule's main I/O, these jacks operate with high resolution, 24-bit 48kHz default signal conversion and up to 96kHz, ensuring seamless and precise integration with your other CV destinations and sources. The inputs and outputs are suitable for both audio and CV, and their range can be individually calibrated between -10V and +10V and saved in user memory. If you're running out of the I/O you need to make your meta modular dreams a reality, the MetaAIO from 4MS is an ideal solution.

MetaAIO Features

• Input / output expander for the 4MS MetaModule
• 6 audio / CV inputs and 8 audio / CV outputs
• Each I/O capable of signal processing up to 24-bit, 96kHz, default 48kHz
• Each jack offers 20Vpp voltage range, or configure each jack individually and save in user memory
