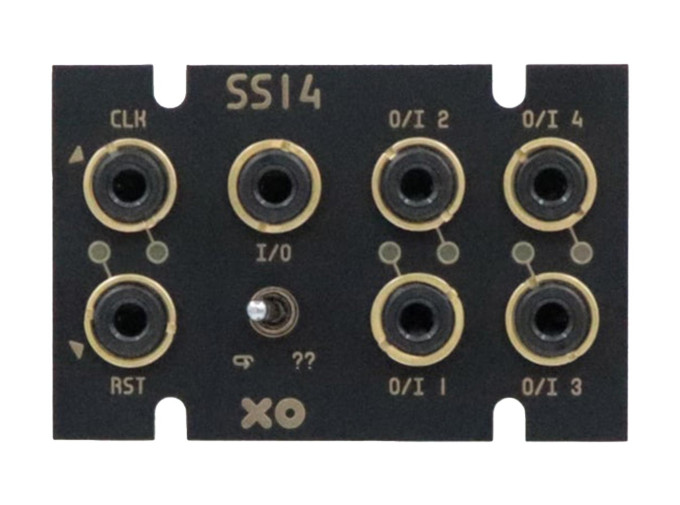

SS14 Smart 1-to-4 Switch (1U)

Xodes SS14

Great for adding movement and variety to your patches, Xodes' SS14 is a rock-solid, one-to-four sequential switch that can run in either direction. Clocked via an external input, the SS14 determines the size of the sequence based on the largest O/I step used—ranging from one to four steps. You can reset the sequence for consistent downbeats via the reset input, and switching the mode from loop to random offers a more unpredictable and non-repetitive sequence. Including jumpers on the rear to normalize multiple of the O/I jacks, the SS14 is a fantastically compact tool for creating sequenced modulation and timbres or even sequenced sequences!

SS14 Features

• 1-4 sequential switch
• Bi-directional operation
• Sequence length is determined via greatest O/I used (1/2/3/4 steps)
• Clock and reset inputs for running and restarting the sequence
• Mode toggle determines if the sequence loops sequentially or randomly
• Rear triple jumper allows normalization within the O/I jacks (1>2 / 2>3 / 3>4)
• Open screw slots ensure compatibility with both Intellijel and Pulp Logic 1U formats
