Waldorfmod1 Advanced Envelope

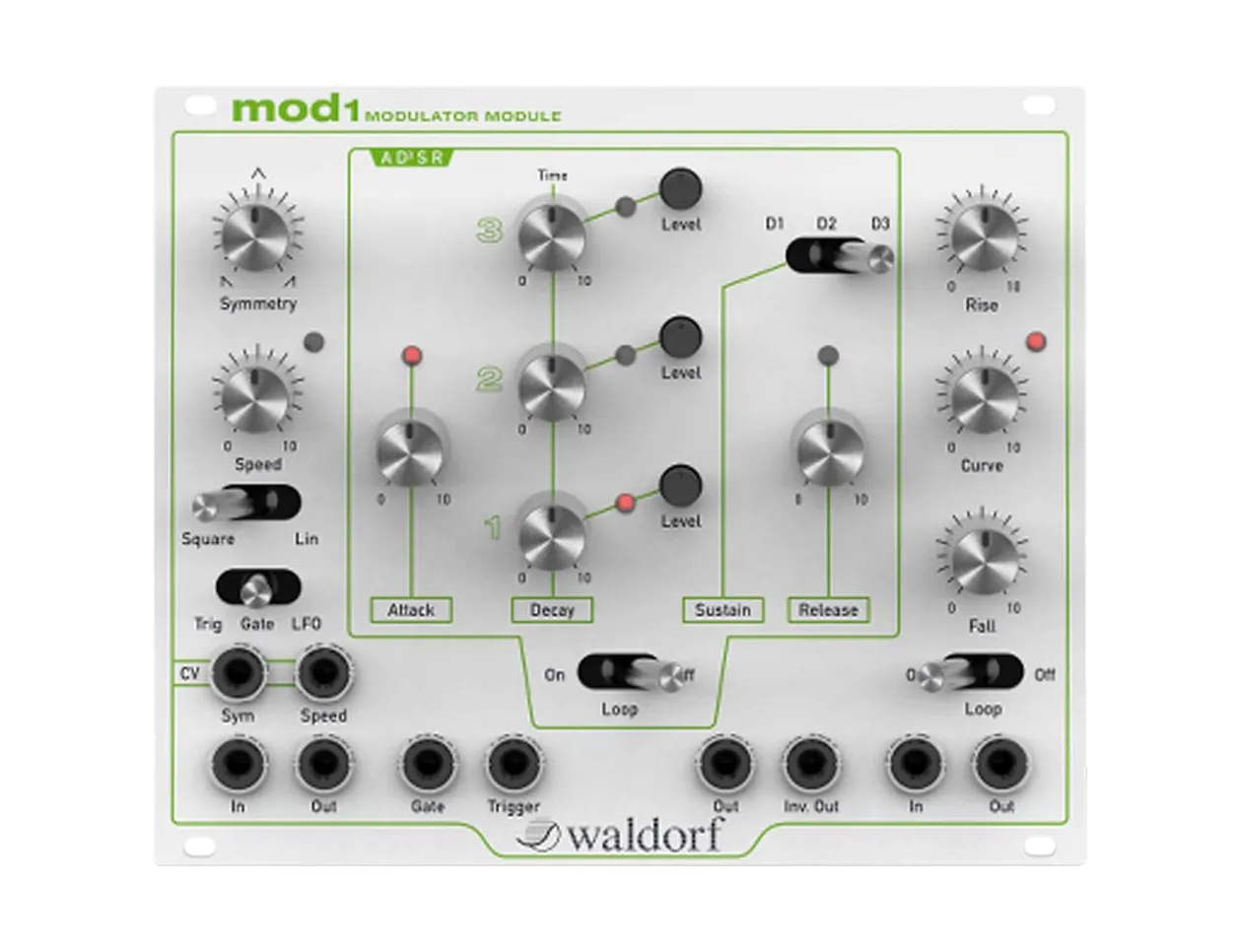

Waldorf mod1

Waldorf’s mod1 is comprised of three individual modulation sources in a single module. The first is an AD3SR, which is essentially an ADSR with three decay stages, each with time and target level control. Second is a symmetry generator, which is a two-segment modulator with CV’able symmetry. Finally, there is the Rise and Fall section, which is a two-stage envelope rise and fall with curve control over the rise stage and an optional loop mode.

mod1 Features

1. AD3SR

• ADSR envelope with up to three decay stages
• Each decay stage with time and target level control
• Configurable for 1, 2, or 3 decay stages
• Loop mode for looping from attack over all enabled decays stages
• Gate and trigger inputs
• Positive and Inverted output

2. Symmetry Generator

• Two segment modulator with controllable symmetry
• CV-inputs for speed and symmetry
• LFO mode with bipolar output
• Gate and Trigger envelope modes with unipolar output
• Linear or rectangular wave forms

3. Rise & Fall

• Two stage envelope “rise & fall”
• Flexible curve control for rise stage – from smooth classical RC shape to cutting linear segments
• Optional loop mode
• Gate input
• Signal output
