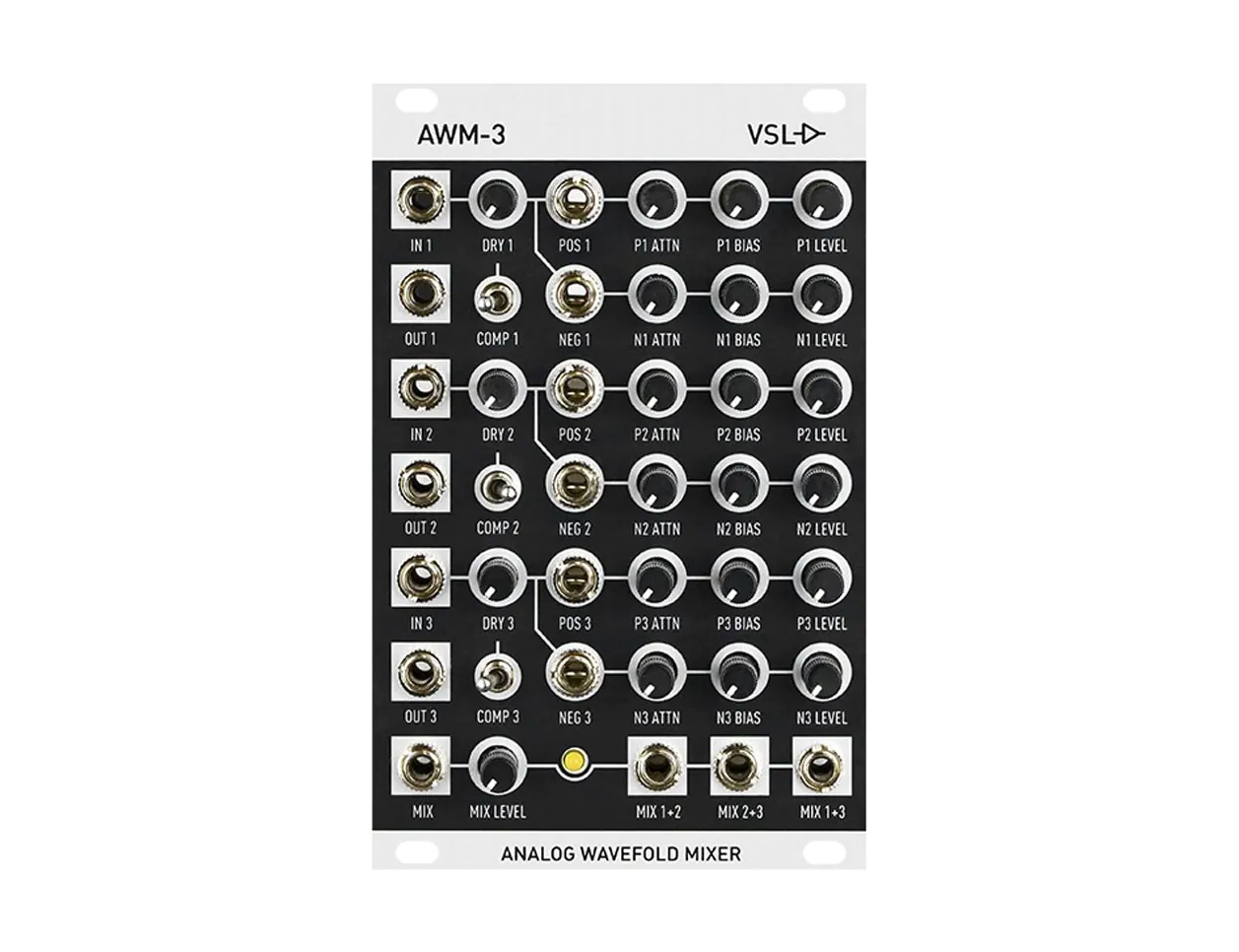

Vintage Synth LabAWM-3 Analog Wavefold Mixer

Vintage Synth Lab AMW-3

The AWM-3 by Vintage Synth Lab is a complex wave-shaping, 3-channel analog mixer module that allows for precision control over compression and waveshaping per channel. The ability to output various mixes concurrently via the mixer's multiple outputs can result in a diverse palette of complex chorus-like timbres.

In addition to offering individual control per input, each channel can also be connected in series to create double and triple wave-folded signals. Each channel's front-end compressor can also be used for both waveshaping and routing asymmetrical wave-shaped signals through cascaded wave-fold stages.

AWM-3 Features

• Accepts CV or audio-rate frequencies
• Provides up to +6dB of amplification
• Individual wave position, bias and level controls
• Dry / Wet control + compressor toggle on each input
• Three matrix mix outputs
