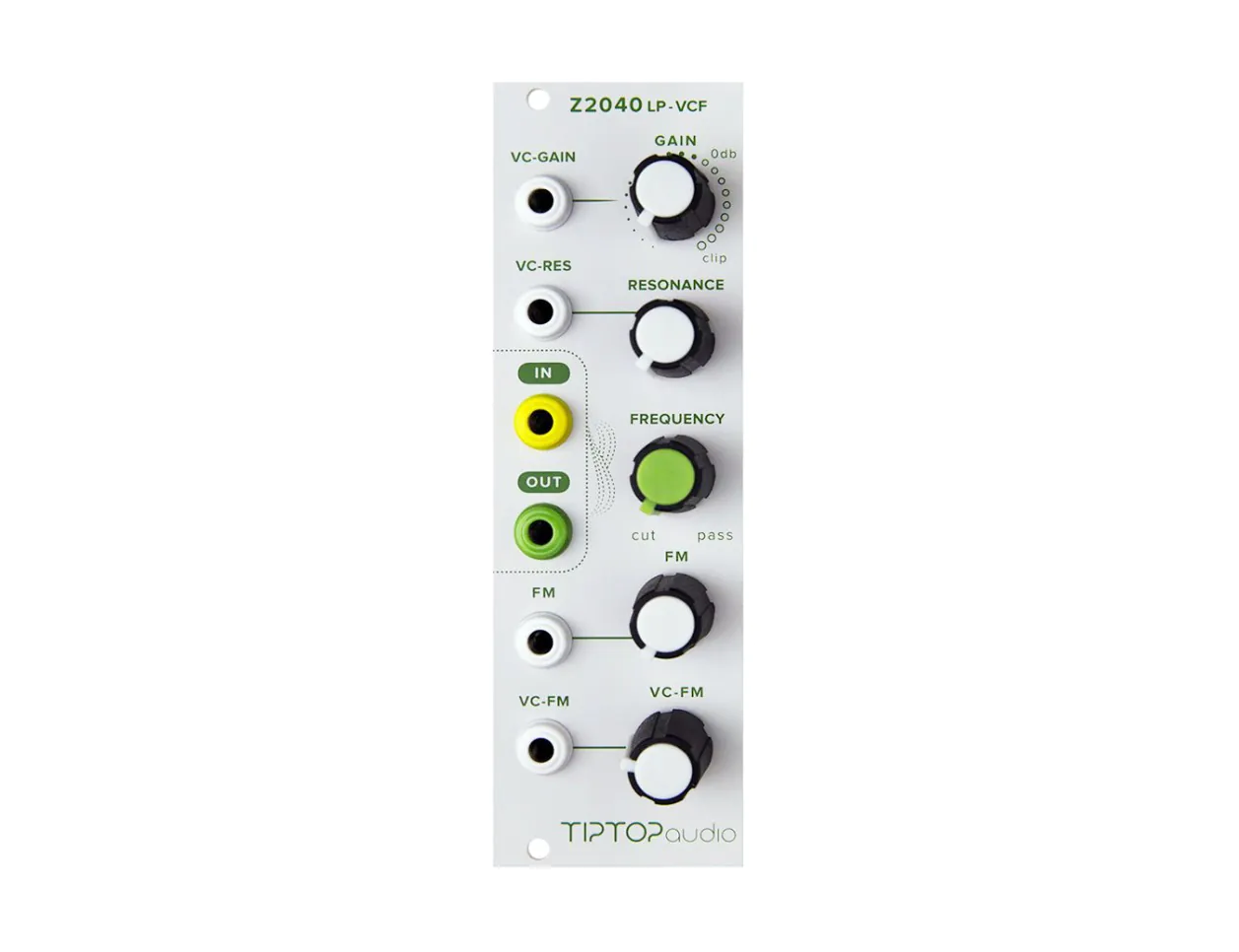

Tiptop Audio Z2040 VCF

The Z2040 VCF is Tiptop audio’s 4-pole analog filter based on that of the Sequential Circuits Prophet 5 in all its creamy elegance. The filter is capable of exceptionally crisp leads and thick basslines when paired with an appropriate EG (for example, Tiptop’s Z4000). When at full resonance, the is capable of functioning as a since-core VCO that excels at overtly percussive sounds.

Z2040 VCF Features

• Tiptop Audio Z2040 4-Pole Discrete Design Voltage Controlled Filter
• Featuring a similar core to that of the SSM2040 Filter Chip used in the Prophet 5 Rev 2 Synthesizer and the SSM2044 used in the famous early EMU Samplers and PPG Synthesizers
• From Lush Creamy Character to Extreme Growling Sounds
• Self Oscillates turning Z2040 into a pure sine-core VC-Oscillator
• Cut-Off Frequency Range: All Pass - DC
• Modulation Inputs built to handle both CV and Audio Signals
• Audio VCA can be configured to act upon Input or Output of the Filter
• Controls: Cut-Off Frequency, Resonance (Q), Cut-Off Frequency Modulation, Cut-Off Frequency Modulation Index, Input Gain
• Inputs: VC-Gain (Input or Output, user configurable), VC-Resonance (Q), VC-Frequency Modulation, VC-Frequency Modulation Index, Audio IN
• Outputs: Audio OUT
• Maximum Audio Input Level: 20Vpp
• Maximum Audio Output Level: 21Vpp
• Output Impedance: 220 Ω
