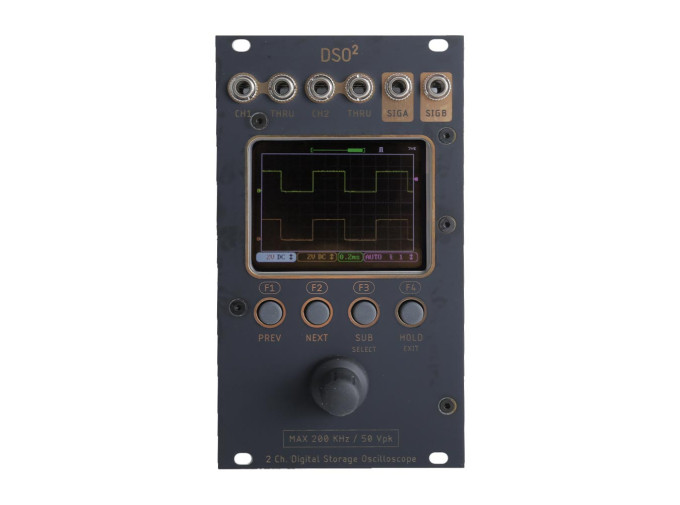

Tall Dog Electronics DSO 2

Observe the interplay between two signals with DSO2, the dual-channel oscilloscope by Tall Dog Electronics. Buffered inputs, outputs, and thru-puts impart virtually no color on your signal—it merely prods the voltage a bit. The large screen gorgeously displays the two signals and there's an internal signal generator. In addition to generating your standard waveforms, the DSO2 can also apply up to 3v of offset, and features an X/Y plotting mode. A snappy response and crisp visualization makes the DSO2 from Tall Dog an excellent voice for voltage observation.

DSO 2 Features

  • 2-Channel oscilloscope
  • Buffered input, output, and thru-put
  • 2 Signal generators can generate sine, square, triangle, step / duty-cycle, phase, 0-3V amp, 3.3V offset, programmable freq
  • X/Y plotting mode
  • Max bandwidth of 200kHz
  • Max voltage of 50v
  • Horizontal scrolling mode for slow timebases
  • 1kHz Square wave test pattern shown when nothing patched
  • Eurorack module
  • Width: 14hp
  • Depth: 34mm
  • Current draw: 8mA @ +12V, 8mA @ -12V, 250mA @ +5V
