SyntonieVU008 Dual Ramp Phase Shifter

Item#
N13-05090
4hp
$199.00

In Stock Available immediately!

  • Free Shipping
    Free
    Shipping
  • No Hassle Returns
    No Hassle
    Returns
  • Warranty
    Extended
    Warranty
  • Low Price Guarantee'
    Low Prices
    Guaranteed

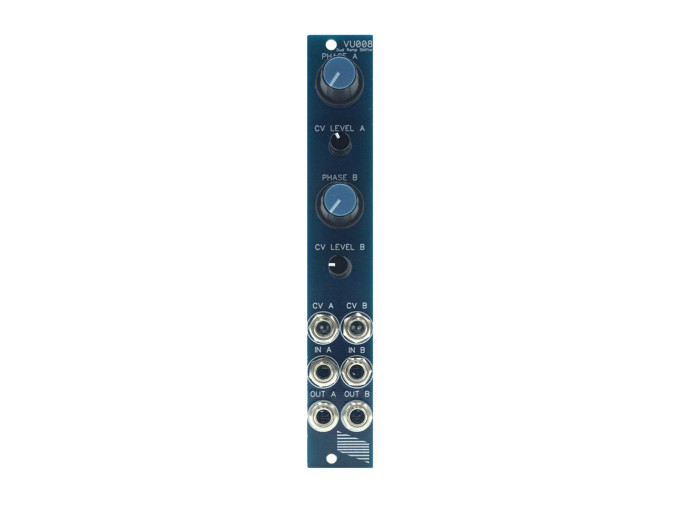

Syntonie VU008

Add motion and directional control to ramps while waveshaping triangle or sine signals with the VU008 Dual Ramp Phase Shifter from Syntonie. Two channels of phase shifting have individual control knobs and separate CV inputs with attenuverters. By using an H ramp in one channel and a V ramp in another, symmetrical shapes are easily dialed in. Combining the VU008 with other modules provides a solid foundation for elaborate shapes: try the VU008 into the VU010 Summer, then go to the VU002 Frequency Doubler for a nice diamond shape. Add an essential part of complex pattern generation and incredibly useful utility to your video rig with the VU008 Dual Ramp Phase Shifter from Syntonie.

VU008 Features

  • 2 Channel phase shifter/waveshaper
  • Individual control knobs
  • Individual CV inputs with attenuverters
  • V Ramp signals move left–right, H Ramp signals move up–down
  • Triangle and sine waves are waveshaped
  • Eurorack module
  • Width: 4hp
  • Depth: 65mm
  • Current draw: 55mA @ +12V, 50mA @ -12V
