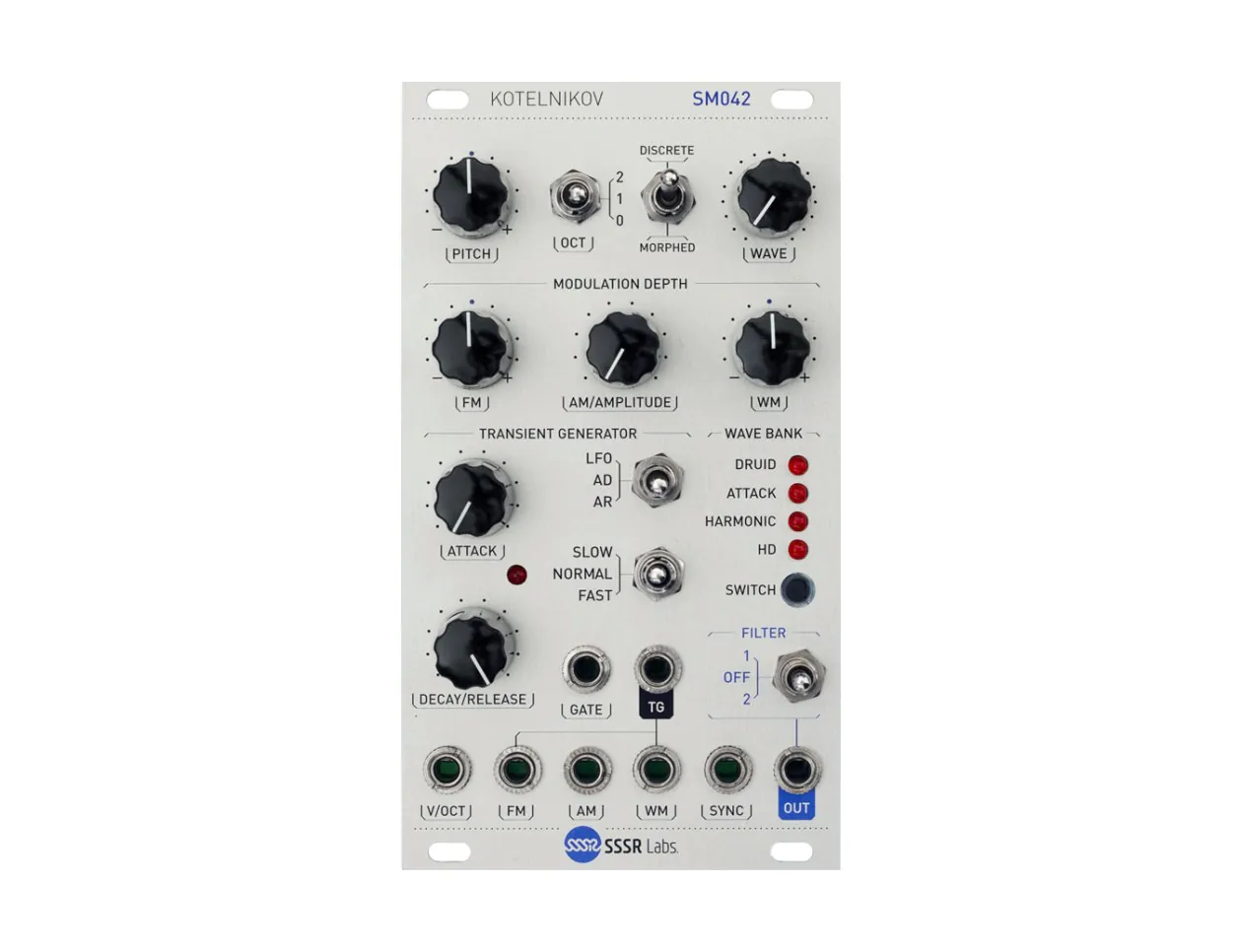

SSSR Labs SM042 Kotelnikov
The SM042 Kotelnikov is a digital voltage controlled wavtable oscillator that features a morphing function, as well as a built-in transient generator that can also be used as an AD/AR envelope generator or resettable LFO. Additonally the module also features Bi-polar analogue amplitude modulation. This allows the module to exist within the context of a traditional subtractive synthesis system, or independently as a full synth voice. Additionally, the module features a pitch resolution of 6 cents and a CV input sampling rate of 6khz, which gives smooth, FM-ready CV response.
SM042 Kotelnikov Features
- Digital Voltage Controlled Morphing Wavetable
- User-updatable Wavetables
- Analogue Amplitude Modulation
- 12bit Variable Sampling Rate, 4.2-133kHz
- Eurorack module
- Width: 14hp
- Depth: 40mm
- Current draw: 50-80mA @ +12V, 25-50mA @ -12V
Product Demo Videos
SSSR Labs Matrixarchate, Kotelnikov And AWS Modules
For this video we created a system with SSSR Labs modules as the core sound generators and used their matrix module to route the signals in the system. At 4:32 there is a patch where the Matrixarchate is sequenced to create a rhythmic pattern.
The SM042 Kotelnikov is a wavetable oscillator with the ability to be used as a full synthesizer voice. The SM630 AWS is a non-linear wave-shaper with three different modes. This circuit is based on the harmonics circuit from the rare Alisa-1377 synthesizer that was produced in the USSR. The SM010 Matrixarchate is a 16x8 matrix that is bi-directional and can store presets which can be stepped through with triggers.
The SM042 Kotelnikov is a wavetable oscillator with the ability to be used as a full synthesizer voice. The SM630 AWS is a non-linear wave-shaper with three different modes. This circuit is based on the harmonics circuit from the rare Alisa-1377 synthesizer that was produced in the USSR. The SM010 Matrixarchate is a 16x8 matrix that is bi-directional and can store presets which can be stepped through with triggers.
SSSR Labs SM042 Kotelnikov Wavetable Oscillator Reviews
