Soundmachines UF1 Microfx Digital Effects Processor

Item#
N13-5675
8hp
In Stock Available immediately!
  • Free Shipping
  • No Hassle Returns
  • Extended Warranty
  • Low Price Guarantee
$240.00

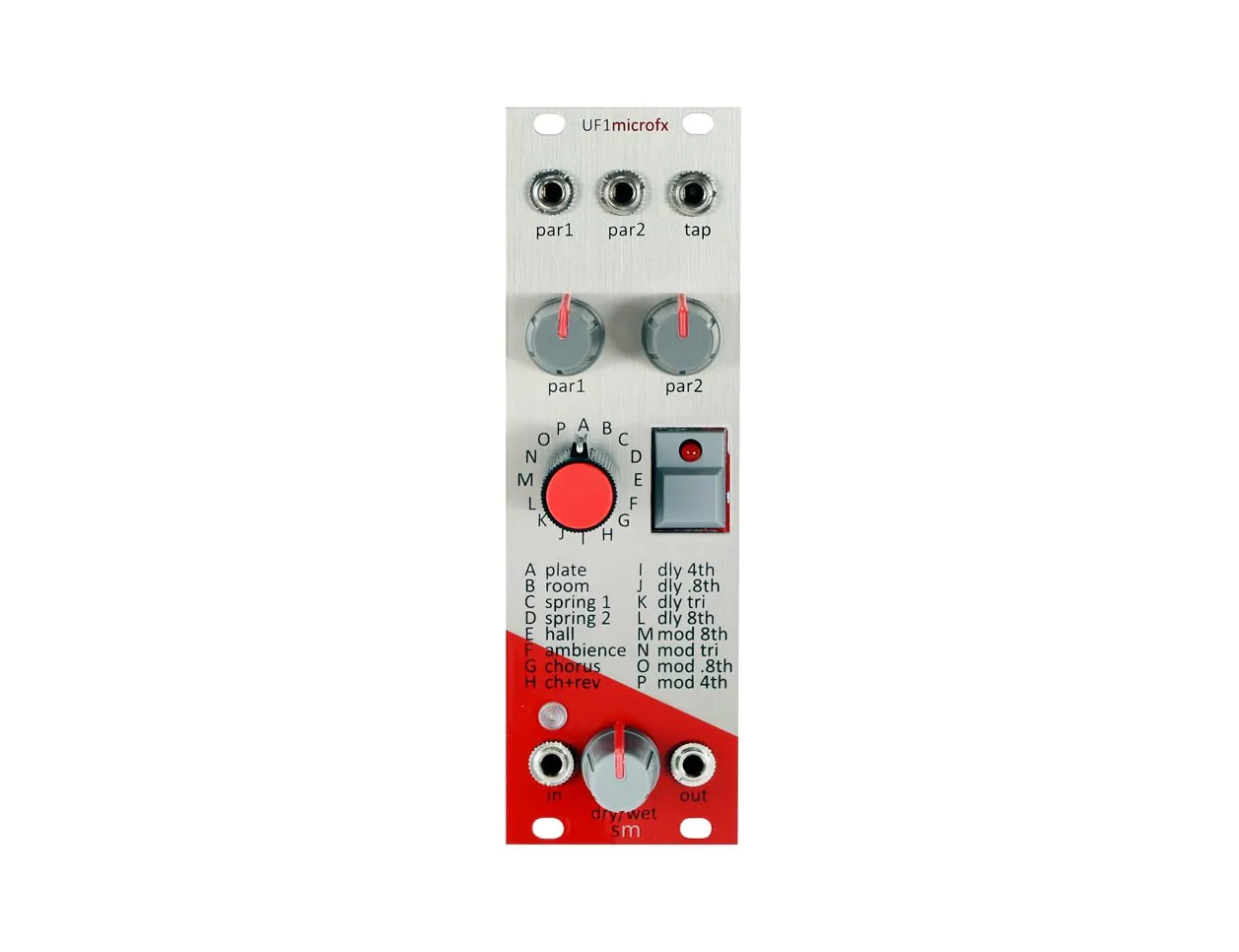

Soundmachines UF1 Microfx

The Soundmachines UF1 Microfx is a compact mutlieffects processor optimized for use in Eurorack modular synthesizer systems. The module provides pristine delays, reverbs, and chorus. All in all, there are sixteen different algorithms, each with several malleable parameters. This means that rather than another multi effects unit, the UF1 is a powerful tool for sound design and beyond.

Dedicated CV inputs and a clock input ensure optimal synchronization with other Eurorack modules for even more compelling results.

UF1 Microfx Features

  • High quality 24-bit DSP in Eurorack format
  • 16 DSP algorithms: plate, spring, hall, room, chorus, modulated delays, and more
  • Delay times up to 600ms
  • 2 variable (and voltage controllable!) parameters per algorithm
  • Tap tempo with dedicated clock input
  • Panel width: 8hp
  • Module depth:
  • Power consumption: 20mA @ +12V / 5mA @ -12V
