SoundcraftGB2R 16CH 16-Channel Mixer
- No Hassle
- Low Prices

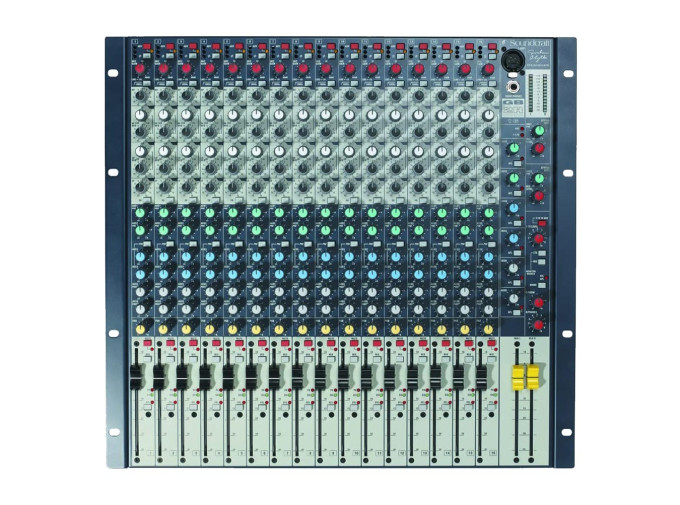

Soundcraft GB2R 16CH
The GB2R-16 from Soundcraft is a 16 channel, rack mountable mixer with a robust list of features and exceptional sound quality. This version has 16 mono channels with the same GB30 mic amps found in many Soundcraft products and a 4-band EQ delivering high fidelity that can be tailored to your needs. Six Aux controls—1 & 2 are pre-fader, 3 & 4 are selectable to be either pre- or post-fader, and 5 & 6 are post-fader—makes routing your signals to outboard equipment a breeze. Rear connections are in no short supply with each channel having its own direct out and TRS insert, monitor outs, main mix with dedicated insert for each channel output, two stereo 1/4" returns, and six aux outputs. The main output section has dedicated Aux master outputs and levels for the stereo returns.
Usable mounted or unmounted, the GB2R-16 is perfect for medium sized venues as well as studios thanks to the direct outs. This sturdy mixing board will serve you for years to come and with the plethora of expandability options, it can grow with you.
GB2R 16CH Features
- Pro-level analog mixer with 16 mono channels
- Supports both desktop or rackmount use (connector port rotates convenient cable orientation)
- Mic and line input options on every channel
- Dedicated 1/4" TRS insert points on all channels
- Direct outputs on every channel with selectable pre/post-fade source (great for recording)
- Four-band EQ with sweepable Hi Mid/Lo Mid frequencies on all channels
- Switchable 100Hz HPF on every channel
- Phase invert switch on every channel
- Per-channel switchable +48V phantom power
- Six aux sends on every channel (two prefade, two postfade, two switchable)
- Mute and PFL options on every channel
- Per-channel assignment to Main Mix or Submix busses
- Two stereo aux returns
- RCA stereo 2-track input and Record Output
- XLR main outputs with master effect insert points
- XLR mono sum output
- XLR Sub outputs with dedicated effect insert points
- Dedicated 1/4" monitor outputs
- 4-pin XLR Lamp jack on front panel
- Total channels: 16
- Mic Inputs: 16x XLR
- Line Inputs: 16x 1/4", 2x RCA (stereo)
- Main outputs: 2x XLR main, 2x 1/4", 1x 1/4" mono
- Direct outs: 16x 1/4"
- Aux I/O: 4x XLR aux out, 2x 1/4" aux out, 4x 1/4" return
- Headphone outputs: 1x 1/4"
- Dimensions: 8.2 x 17.5 x 21"
- Weight: 44.7lbs
- Power: mains input via IEC
