In the microphone world, there are a few models that have made such a name for themselves that they always make it onto “desert island” lists: microphones that, yes, every studio truly should own. The Sennheiser MD 421 is one such mic.
Initially released to the market in 1960, it’s truly a do-it-all mic. It makes a great choice for capturing any source from vocals to drums to brass to bass, and it is used for everything from news and radio broadcasts to high-end recording studios.
Let’s go over the history of this beloved microphone, from its ancestor—the MD 21—to the modern MD 421 II: a must-have for every microphone locker.
MD 421 History + Pre-History
The MD 421 evolved from a previous Sennheiser model: the MD 21. Originally released in 1953, the MD 21 featured an omnidirectional polar pattern and was primarily used in news broadcasting scenarios. Toward the end of the decade, Sennheiser engineers were instructed to design a new microphone that was better suited for recording applications.
×
In 1960, the MD 421 was released. It differed from the MD 21 in several distinct ways. It had a directional, cardioid polar pattern and was marketed as a microphone principally for the recording studio. In the decades following its release, it has become one of the most beloved dynamic microphones due to its versatility and utility for recording, music production, broadcast, and in more recent years, streaming.
Multiple variations of the 421 have been released over the decades since it first came to market. Most models offer something the previous versions didn’t, from variations in housing colors, the inclusion of the 5-position high-pass filter, removable and custom mic clips, and different types of transformers designed to work with various tape machines. So, let’s briefly go over each major version of the MD 421.

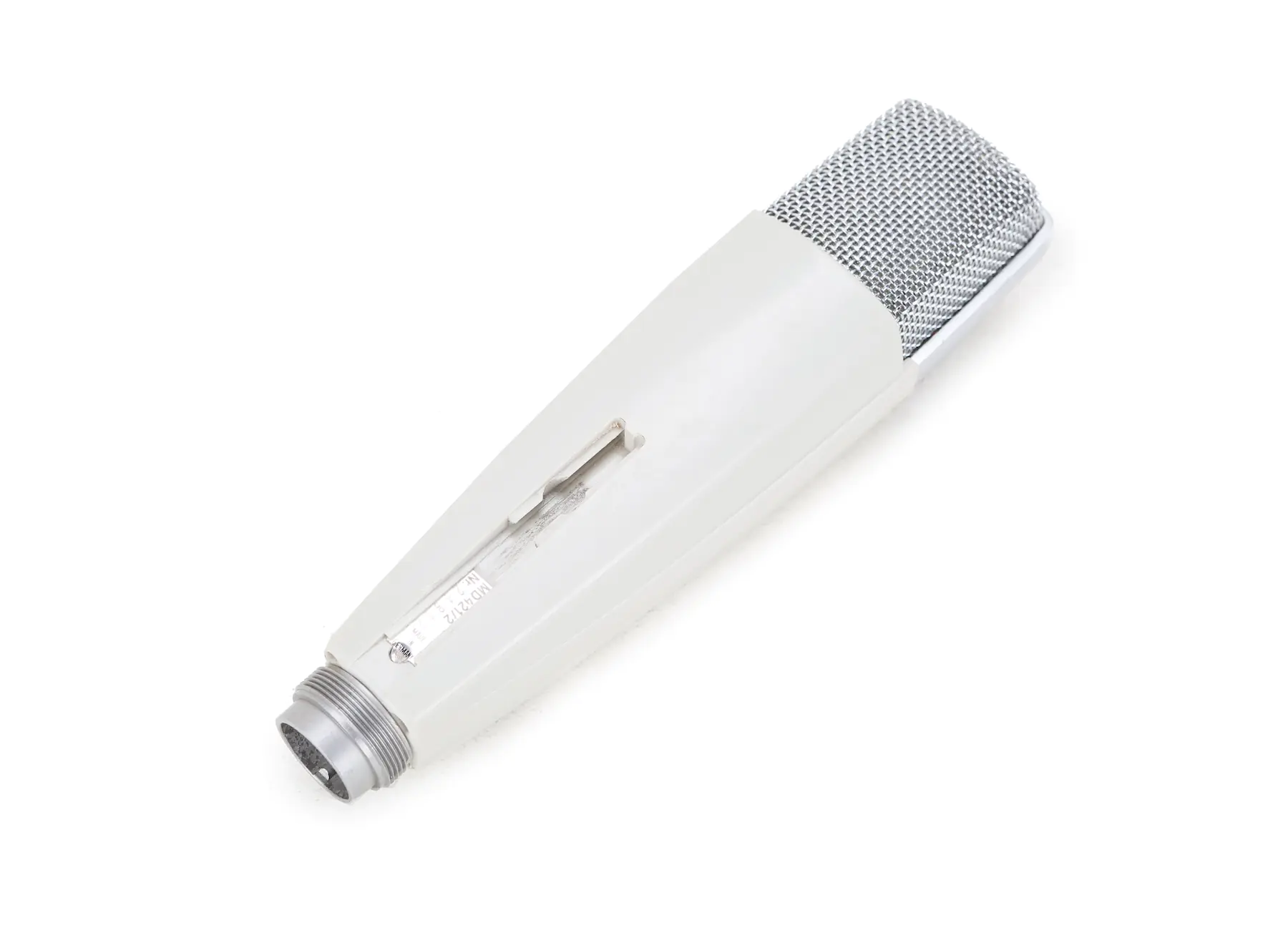

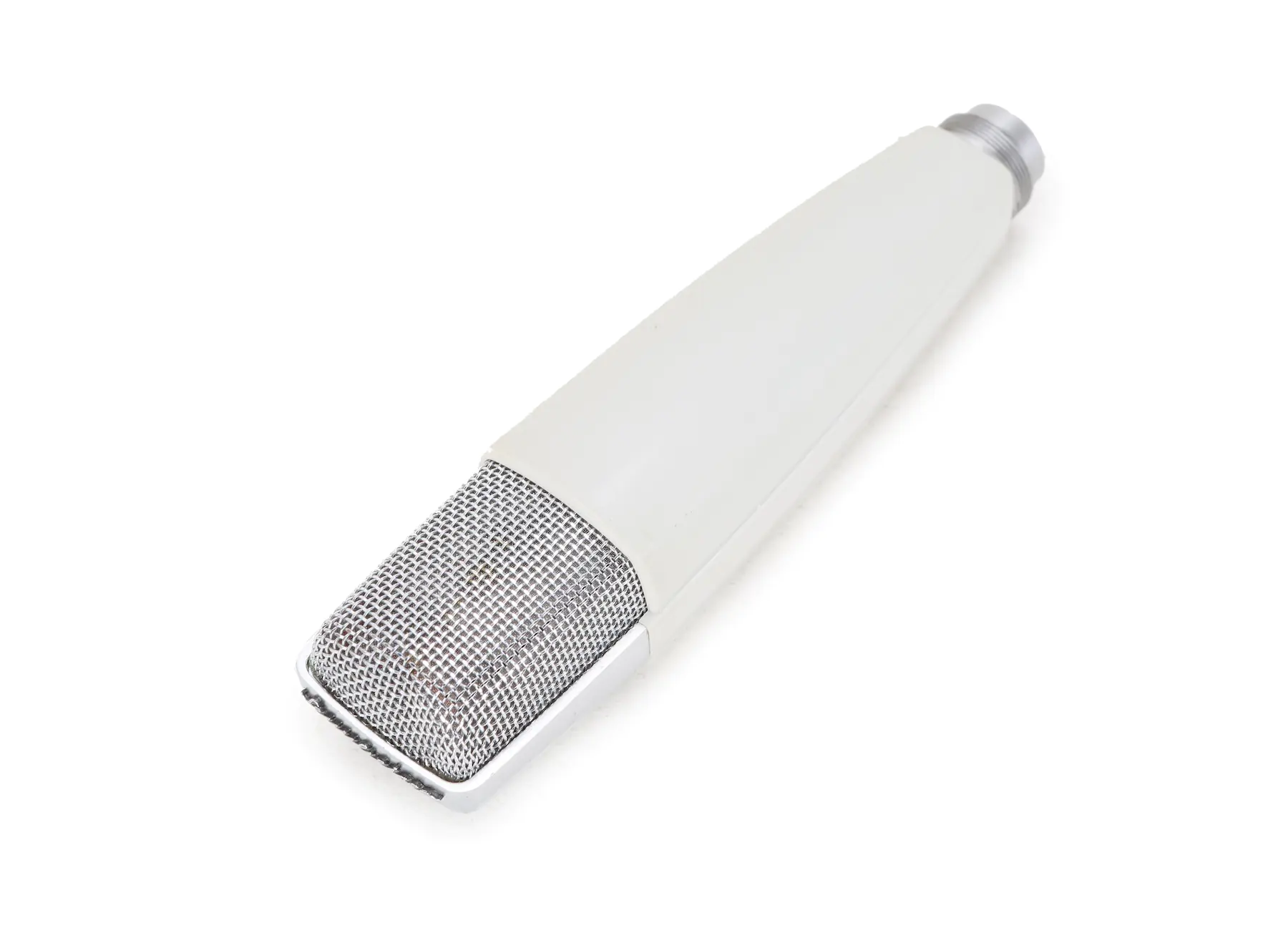

The MD 421-2 was the follow-up to the original model. It was outfitted in a classy silver and gray enclosure. There aren’t really any fundamental differences between this model and the original version. The 421 N had the same color housing and was the first 421 model to include the 5-position filter switch. In fact, it was one of the first microphone models to offer a high-pass filter of any kind, let alone one with five frequency options! The 421 de Luxe was the first to sport the black housing. Its grille was gold, but the circuitry was the same as the 421 N.
Next in the line was the 421 HL. Sennheiser went back to the gray/silver enclosure, and for the first time, the microphone featured a transformer for the additional high-impedance connection for use with consumer tape machines. Notably, the 421 HL does not feature the high-pass filter rolloff switch.
The 421 U went back to the black housing and included a balanced XLR connection. This model saw two different variations: the U4 and U5. The only difference was the thread on the microphone’s stand clip. The U4’s thread is interchangeable, while the U5 had a fixed thread according to the 5/8" American thread standard.
2002 saw the release of the MD 421 II, the most well-known modern version. It is effectively the same as the 421 U. Sennheiser changed up their manufacturing process for it to be more economical, but otherwise they’re seemingly identical.
There is also an MD 521. Known as the “Blackfire,” it retained the black housing and balanced XLR output but doesn’t come with the 5-position high-pass filter.
Finally, in late 2024, Sennheiser introduced the MD 421 Kompakt, a much smaller version of the classic mic designed to fit into tight spaces. It is available with a specially-designed drum clip, making it easy to use in drum kit miking scenarios.
Technical Specs + Features

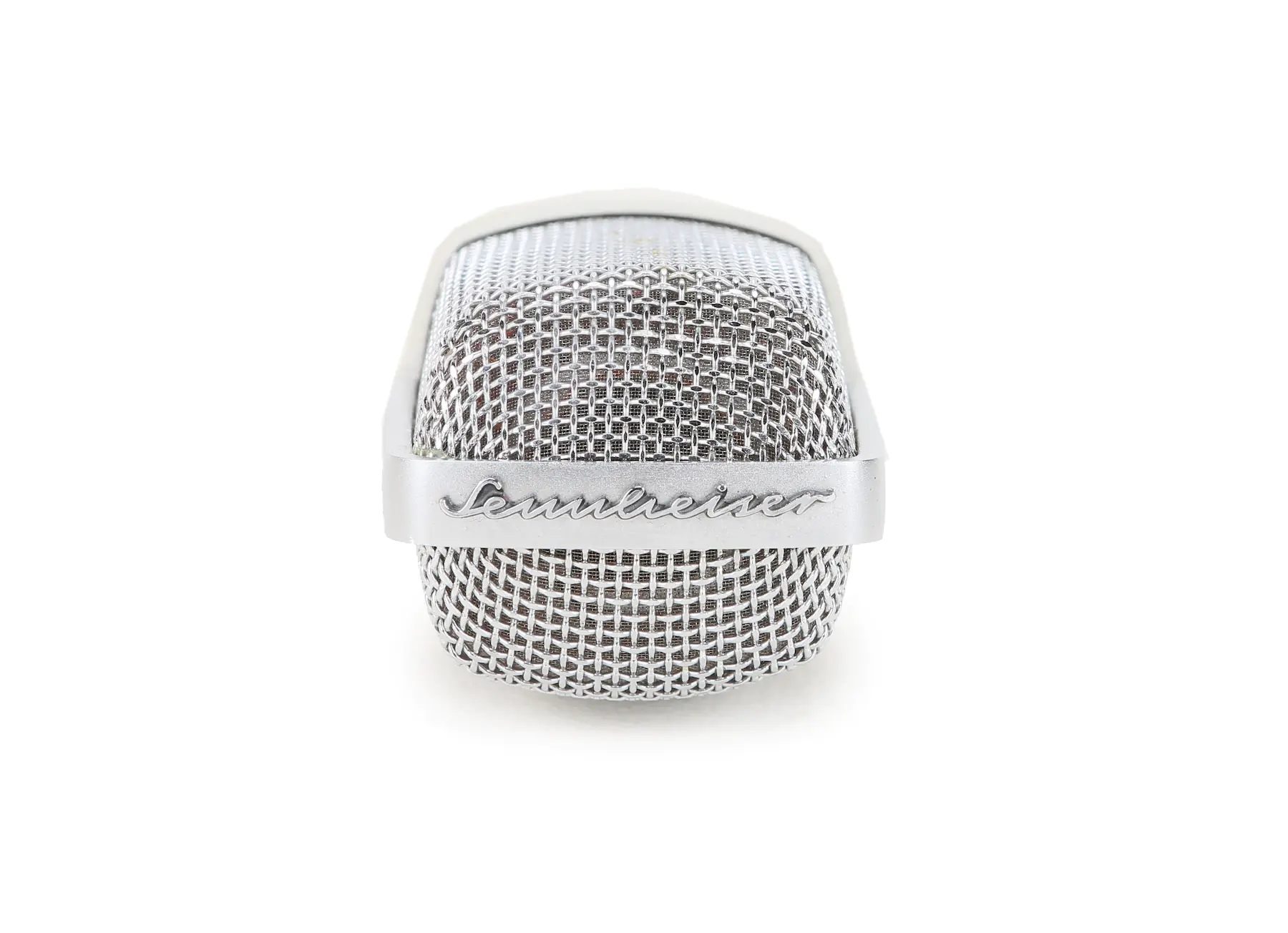

Several design principles help set the MD 421 apart from other dynamic microphones. The housing with the metal crossbar over the front of the diaphragm is instantly identifiable, even though at first glance it might look like a side-address microphone. Looks can be deceiving, and like most dynamic microphones, it is a front-address design.
×
The metal crossbar with the Sennheiser logo helps to divide air going into the diaphragm, which reduces pops and plosives when used on voice. It can handle high sound pressure levels, one of the reasons it’s great on loud sources like drums, brass instruments, and guitar amps.
It has a wide frequency response, from 30Hz to 17kHz: making it equally great at picking up low-end sources as it is for capturing the high end. The low range is almost linear up to 1kHz and has a gentle lift in the upper midrange that makes it great for sources that live in that range, like vocals and guitars.
The compact design of the 421’s transducer system was a new engineering concept at the time it was released in 1960. This is because at the time, directional polar patterns like cardioid were typically made possible only by including rear element entry ports. This meant that microphones with a directional polar pattern could only be handheld for limited intervals without the directional effect losing its efficacy. The MD 421 changed this. With a smooth, closed housing that didn’t feature any ports, it could maintain directional pickup regardless of how long it was held.
A hum compensation coil wired in opposite polarity to the converter coil is another design element that sets it apart. This cancels out interference from low-frequency fields, which results in a lower noise floor and quiet operation. But the most important feature on the 421 is the 5-position high-pass filter. This is something that most other mics don’t offer and sets it apart. “S” position is for "speech," and cuts low frequencies up to 500Hz. The far-opposite “M” position, on the other hand, is for "music"—which opens up the microphone’s full frequency range. The three in-between positions are detented, something that was incorporated into the manufacturing process in the 1970s.
One of the most appealing factors of the MD 421 is how well it’s suited for miking all kinds of sound sources. For vocals, guitars, and drums it’s a no-brainer. But a lot of engineers love it for smoothing out some of the harshness of brass instruments and to give life to percussion instruments like congas, bongos, or cajon.
Part of the reason it’s so versatile is because of the broad frequency range and 5-position high-pass filter. When you pair what the mic itself can do with high-quality outboard gear or plugins, there’s really no sound scenario it can’t rise to meet.
Impact on Audio
It’s impossible to dispute the enduring impact Sennheiser’s MD 421 has had on the music and professional audio industries. Many popular musicians have integrated it into their live and recording setups. It was strongly featured as part of George Harrison’s 1971 Concert for Bangladesh at Madison Square Garden, with multiple 421s as primary vocal mics for legends like Eric Clapton and Bob Dylan. It's also famously used by The Mars Volta frontman Cedric Bixler-Zavala, using it as a preferred vocal microphone on stage and in the studio.
In 2010, the MD 421 finally earned its place in the TEC Awards TECnology Hall of Fame. And, among particularly obsessive audio nerds, April 21st has even become known as 421 Day.
The microphone maestros at Sennheiser simply knocked it out of the park with the MD 421. Since its initial release in 1960, over half a million 421s have been manufactured—but few major changes have been necessary throughout its long lifespan. It’s one of the most unique and versatile dynamic microphones to ever hit the market. From broadcasting to recording to sound stages to streaming, the MD 421 has a place in every mic locker.
