SGI-44 is a bidirectional effects router that lets users incorporate a wireless receiver and pedalboard in the same performance setup.
SKU
N13-4495

out-of-stock Pre-order info

Special Order Reserve yours today!
Radial Engineering

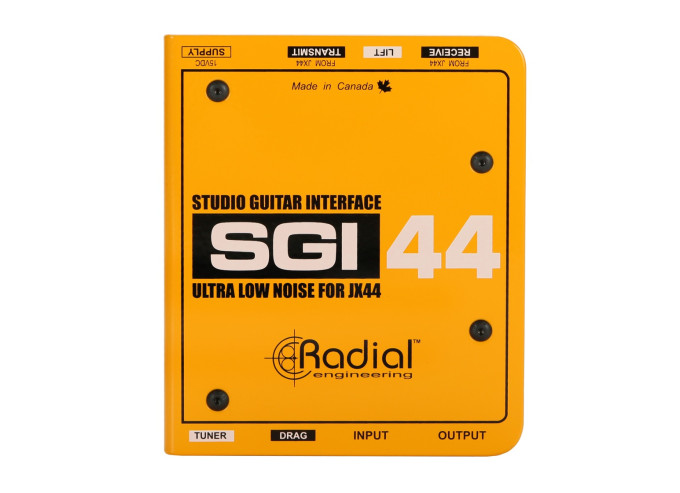

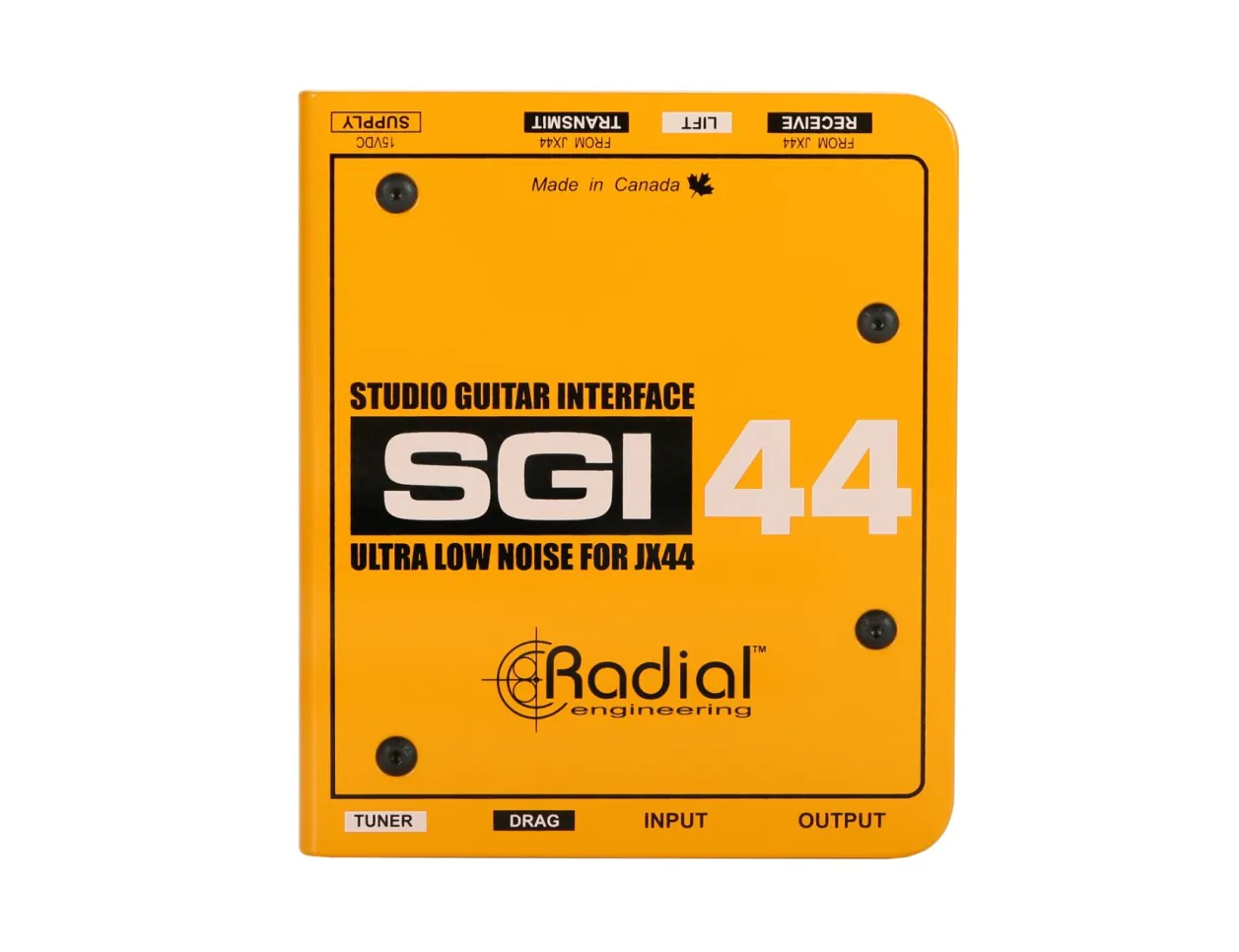

SGI-44 Studio Guitar Interface

SKU
N13-4495
$259.99
envelope Notify me when available
shipping Free Shipping
warranty Extended Warranty
lowprice Low Prices Guaranteed
This is a special order item. Special order delivery times vary. Note that special orders may not be returned or cancelled. Feel free to reach out for more info!
SGI-44 Studio Guitar Interface
$259.99

Radial Engineering SGI-44

SGI-44 is a bidirectional effects router that lets users incorporate a wireless receiver and pedalboard in the same performance setup. Two SGI-44's must be used simultaneously, one at the pedalboard and another with the wireless receiver.

SGI-44 Features

  • Bidirectional long distance send and receive effects router
  • Capable of driving guitar and bass guitar signals beyond 100 meters
  • Entirely discrete class-A circuitry
  • Compatible with Radial JX44 guitar and amplifier selector

Product Details

  • Circuit Type: Active 100% discrete class-A with transformer isolation
  • Frequency Response: 20 Hz to 20 kHz (-2 dB)
  • Signal-to-Noise Ratio: 100 dB (0 dBu input)
  • Dynamic Range: 105 dB
  • Noise Floor: -100 dBu
  • Maximum Input: +2 dBu
  • Total Harmonic Distortion: 0.005% @ 1k
  • Intermodulation Distortion: 0.02% @ 1k
  • Input Impedance: Variable from 10 kΩ to 1 MΩ
  • Output Impedance: 218 Ω (1/4" unbalanced output); 280 Ω (TX balanced output)
