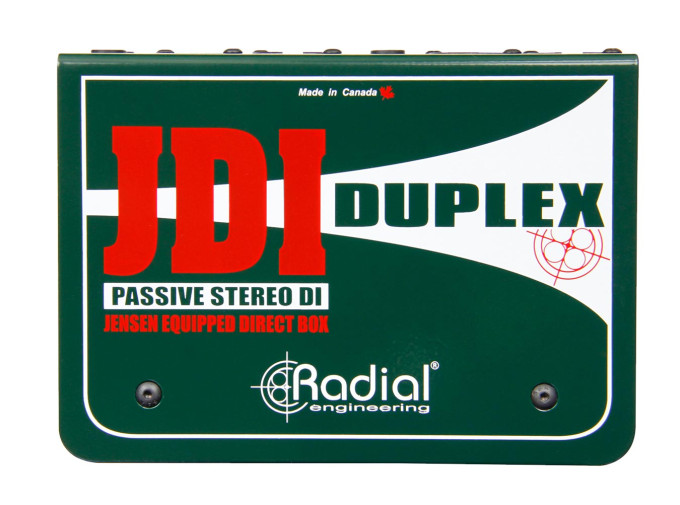

Radial Engineering JDI Duplex

Handle your stereo instruments or audio with the JDI Duplex from Radial Engineering, a passive stereo DI equipped with a multitude of input and processing options to provide the best signal going to the studio or live engineer. Hailing its transparency from the JDI Stereo passive DI, the JDI Duplex offers stellar 1/4", RCA, 3.5mm minijack TRS, and even line-level XLR inputs to bring forth any level of signal to a sculptable mic-level signal for further preamplification and processing down the line. For easy on-stage monitoring or amplification, the 1/4" thru port passes your incoming signal unaffected out of a 1/4" jack, great for guitarists and bass players. Additional customization per channel includes -15dB padding, polarity switch, ground lift, and even a summing switch in which the 1/4" in and thru jacks turn into stereo inputs that sum down to a mono output. With brilliant Jensen transformers on the output to give a vintage character but with a flat response, the JDI Duplex knocks it out of the park when it comes to transforming your signals into mic-level.

JDI Duplex Features

  • 2-channel passive DI
  • Jensen transformers onboard for transparent tonal translation and high dynamic range without distortion
  • Great for stereo and dual mono operation
  • RCA, 1/4", 3.5mm TRS, and +4dB XLR Line inputs
  • RCA and 1/4" Thru connections
  • -15dB pad, phase invert, and ground lift on each channel
  • Mono Sum option on each channel
  • 600 Ohm XLR outputs for connection to your console, interface, or other audio equipment of choice
  • Rock-solid enclosure, military-grade PCB, and welded steel PCB standoffs: this thing is built like a tank
  • Inputs: 2x 1/4" TS, 2x RCA, 2x XLR (line), 1x 1/4" TRS stereo
  • Outputs: 2x XLR
  • Thru outputs: 2x 1/4" TS, 2x RCA
  • Dimensions: 1.9 x 6.3 x 5"
  • Weight: 2.2lbs
