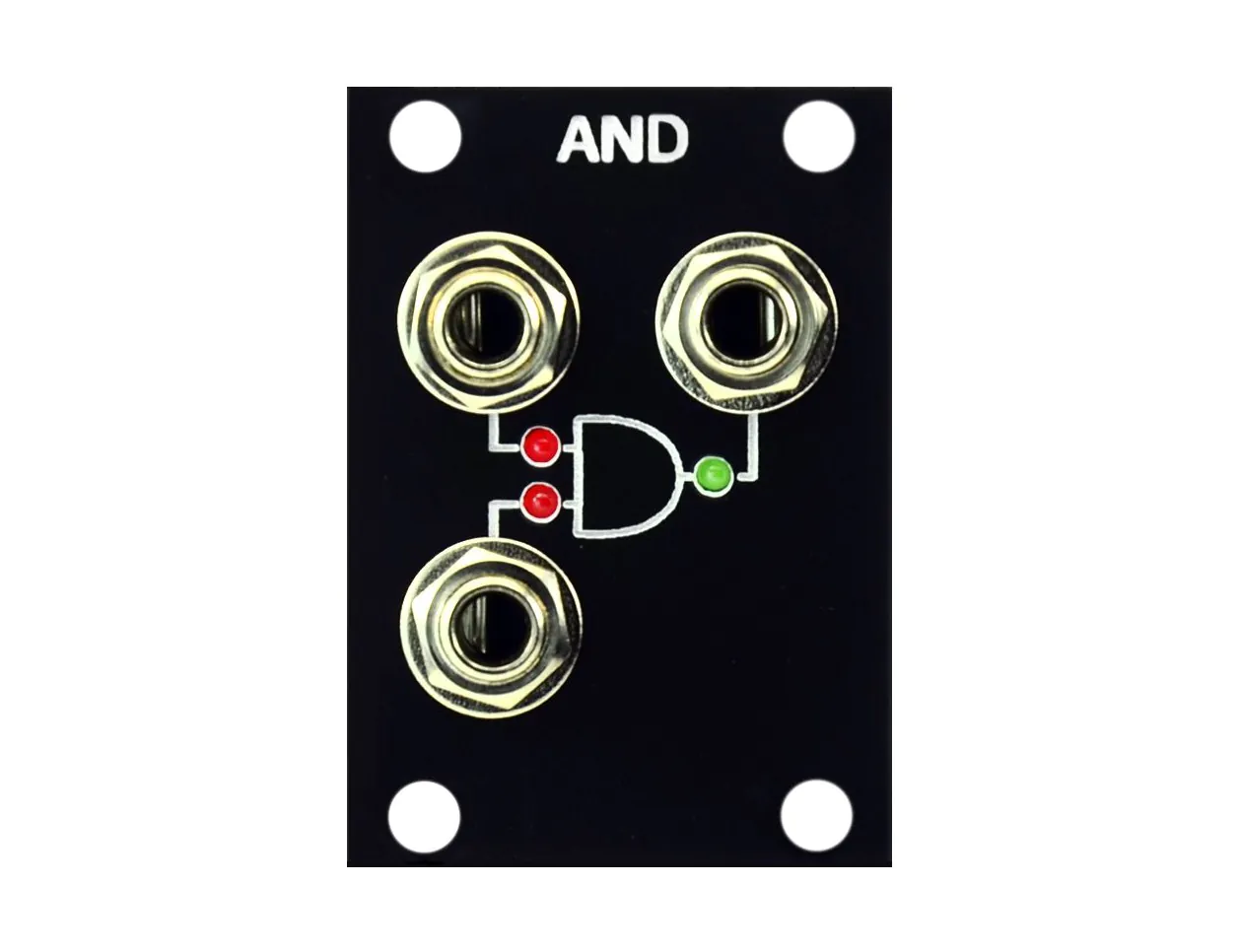

Pulp Logic Logical AND Gate Tile

Item#
N13-4678
6hp
Arriving Soon We're expecting more shortly!
  • No Hassle Returns
  • Extended Warranty
  • Low Price Guarantee
$25.00

Pulp Logic AND

NOTE: This 1U module is only compatible with Pulp Logic 1U cases. It is not compatible with Intellijel 1U cases.

The Pulp Logic Logical AND Gate emits a gate signal whenever its two input signals reach their maximum level. This is useful for triggering meaningful events in a Eurorack modular synthesizer system.

AND Features

  • 2-inputs, one output
  • AND logic function - only outputs gate when both signals are at full level
  • Common event accentuator
  • 1U Eurorack Module
  • Width: 6HP
  • Depth: 14mm (.55")
  • Power Connector: Tile Tail (3-pin)
  • Current Draw: 15mA @ +12V, 0mA @ -12V
