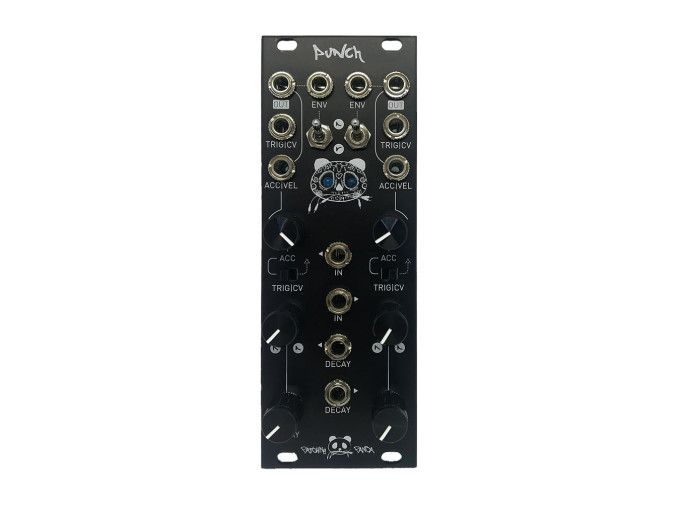

Patching Panda Punch V3
Patching Panda's Punch v3 is a dual decay envelope / VCA pair that turns any sound source into a dynamic modular voice. By cleverly pairing envelope and VCA functions, it allows you to enact dynamic control of oscillators, noise, and more.
Each channel offers an audio input and output, trigger/CV input, and Accent/Velocity input. Each channel features an envelope inversion switch, variable decay curve and length, and CV of decay time. By combining these features, Punch becomes capable of everything from vintage-style drum sounds to velocity-capable synth voices, intense AM, triggerable modulation control, and much more.
Punch V3 Features
- Dual-channel VCA / Decay envelope pairs
- Turns any sound source into a triggerable voice, great for percussion, basslines, and more
- Two modes per channel: Vintage Drum Machine and Dynamic CV Mode
- Capable of AM via Amount CV input
- Envelope inversion switch for each channel
- Eurorack module
- Width: 9hp
- Depth: TBD
- Current draw: 55mA @ +12V, 52mA @ -12V
