Ortofon Omega Pro-S OM Single Cartridge
SKU
N13-7185

out-of-stock Out of stock info

No Longer Available Contact us for a recommendation.
Ortofon

Omega Pro-S OM Single Cartridge

SKU
N13-7185
No Longer Available:  Contact us for a recommendation.
Omega Pro-S OM Single Cartridge

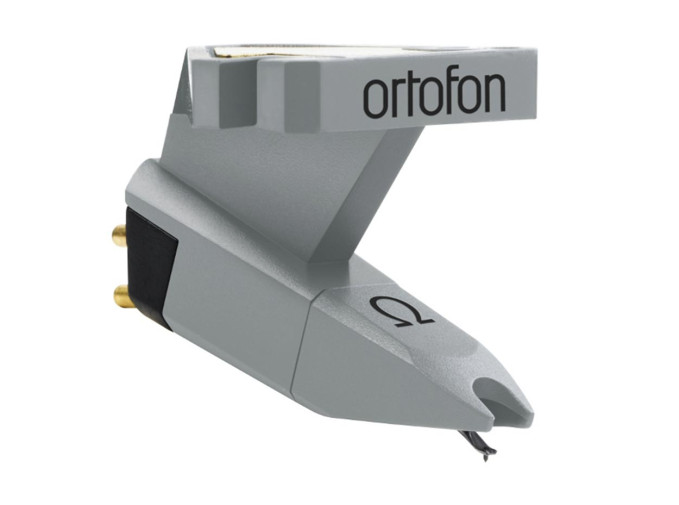

Ortofon Omega OM Single

The Omega OM cartridge from Ortofon houses their most affordable stylus designed for turntable scratching, but it still offers the durability and great sound DJs expect from an Ortofon cartridge. It features a broad spherical needle designed to cause less wear on records than most DJ cartridges.

Omega Pro-S OM Single Features

  • Universal type cartridge
  • Elliptical diamond needle

Product Details

  • Output voltage at 1000 Hz, 5cm/sec: 4 mV
  • Channel balance at 1 kHz: 2 dB
  • Channel separation at 1 kHz  - 22 dB
  • Channel separation at 15 kHz: 15 dB
  • Frequency response: 20-21.000 Hz
  • Stylus type: Elliptical
  • Stylus tip radius: r/R 8/18 µm
  • Tracking force range: 1,5-2,0 g (15-20 mN)
  • Tracking force, recommended: 1,75 g (17,5 mN)
  • Tracking angle: 20°
  • Internal impedance, DC resistance: 750 Ohm
  • Internal inductance: 450 mH
  • Recommended load resistance: 47 kOhm
  • Cartridge weight: 5 g (additional weight incl.)
