Ortofon DigiTrack CC Single Cartridge
SKU
N13-7181

out-of-stock Out of stock info

No Longer Available Contact us for a recommendation.
Ortofon

DigiTrack CC Single Cartridge

SKU
N13-7181
No Longer Available:  Contact us for a recommendation.
DigiTrack CC Single Cartridge

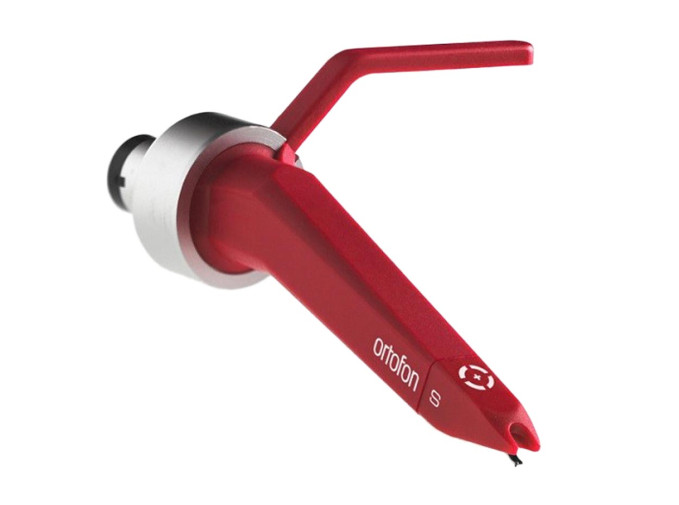

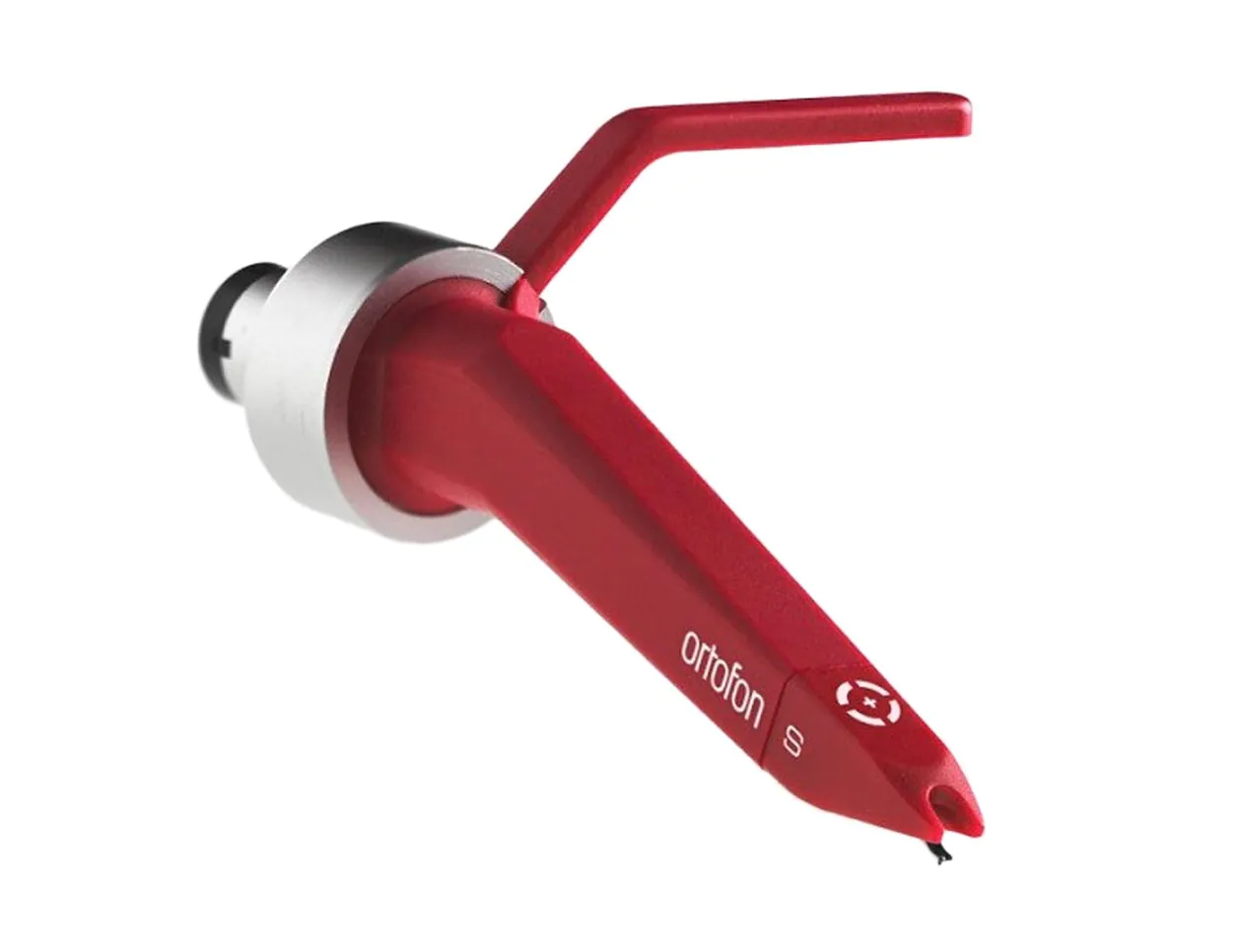

Ortofon DigiTrack CC Single

Ortofon's DigiTrack Concorde Single is a DJ cartridge created for turntable DJ's that use vinyl emulation software like Traktor, Virtual DJ, Serato, and more. The CC has a long lifespan due to the low wear design and frequency response and the cartridge has groove-handling abilities, perfect for scratching and mixing.

DigiTrack CC Single Features

  • Designed for turntable DJs that make extensive use of time-coded vinyl applications
  • Groove-handling capabilities suited for scratching and mixing

Product Details

  • Output voltage at 1000Hz, 5cm/sec. -  8 mV
  • Channel balance at 1kHz  -  1,5 dB
  • Channel separation at 1kHz -  22 dB
  • Channel separation at 15 kHz - 15 dB
  • Frequency range at -3dB -  20-20.000 Hz
  • Frequency response -  20-18.000 Hz +3/-2 dB
  • Tracking ability at 315 Hz at recommmended tracking force -  90 μm
  • Compliance, dynamic lateral -  12 μm/m N
  • Stylus type -  SphericalTracking force range -  2,0-4,0 g (20-40 mN)
  • Tracking force recommended -  3,0 g (30 mN)
