Olitronik CircuitsOBF Modulation Source

Item#
N13-9846
4hp
No Longer Available Contact us for a recommendation.
main product photo

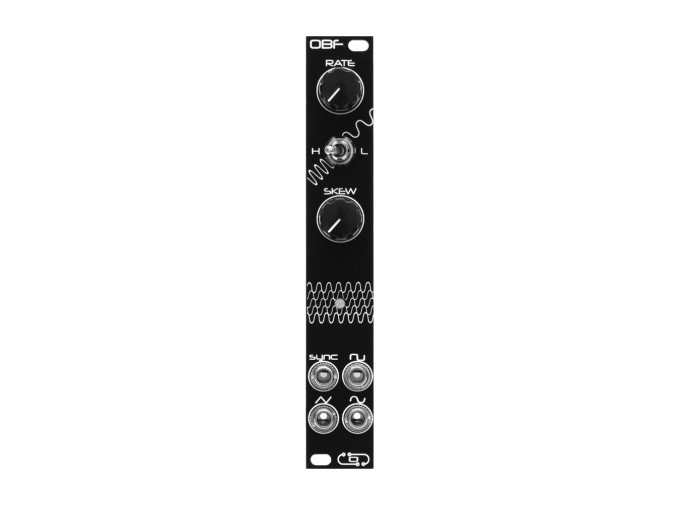

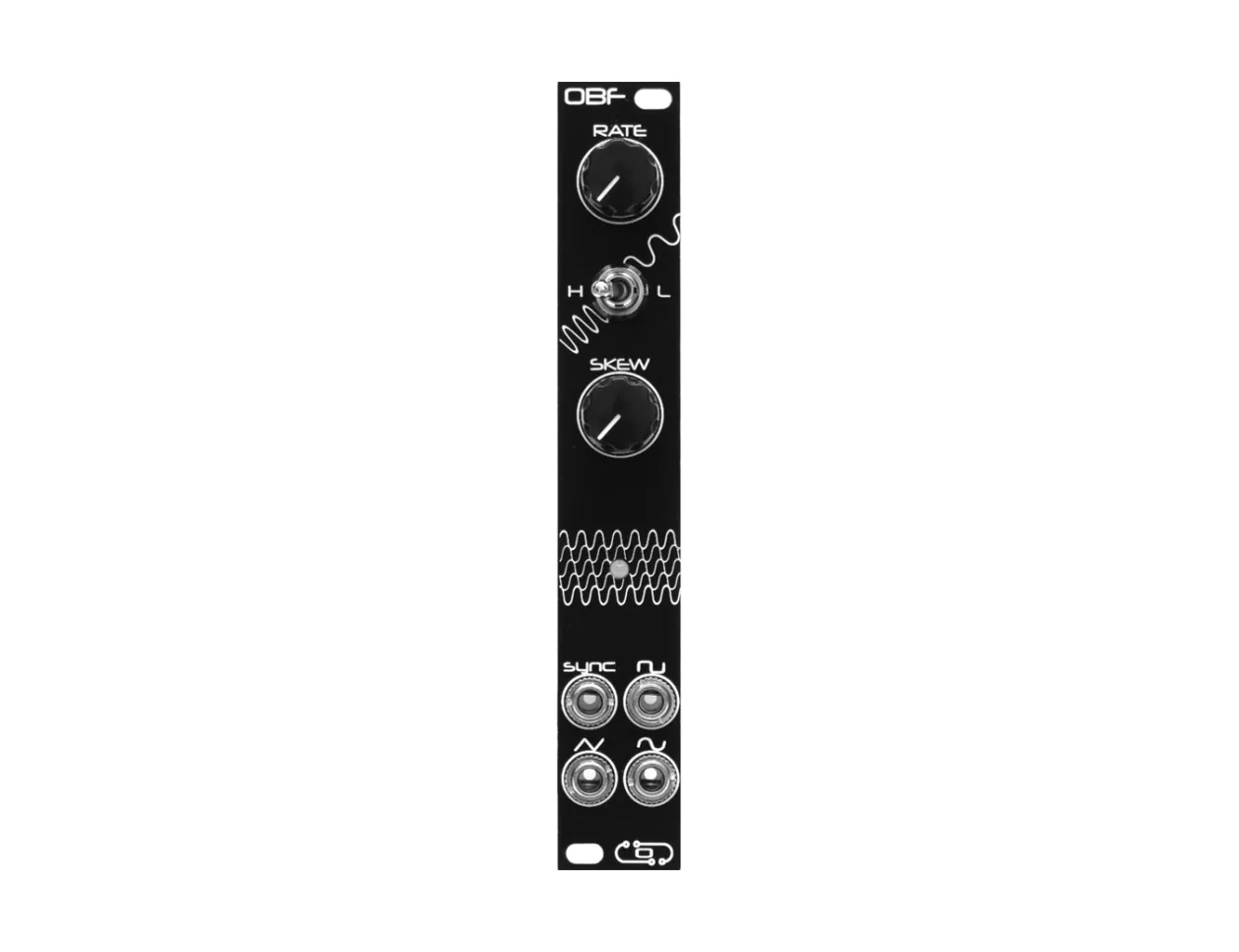

Olitronik Circuits OBF

The OBF from Olitronik is a simple yet useful LFO capable of producing a variety of waveforms with a frequency range of 40 Hz to over 40 seconds per cycle. Using the "Skew" control, Saw, Triangle, Ramp, and PWM are easily attainable, while a pulse set to the OBF's sync input resets the LFO to -5V, the low point in its cycle.

OBF Features

  • Analog LFO module
  • Rate and Skew control
  • High/Low range switch
  • Hard Sync input
  • Ramp/Triangle/Saw, PWM, and Sine outputs
  • Eurorack module
  • Width: 4hp
  • Depth: 30mm
  • Current draw: 12 mA @ +12V, 12 mA @ -12V
