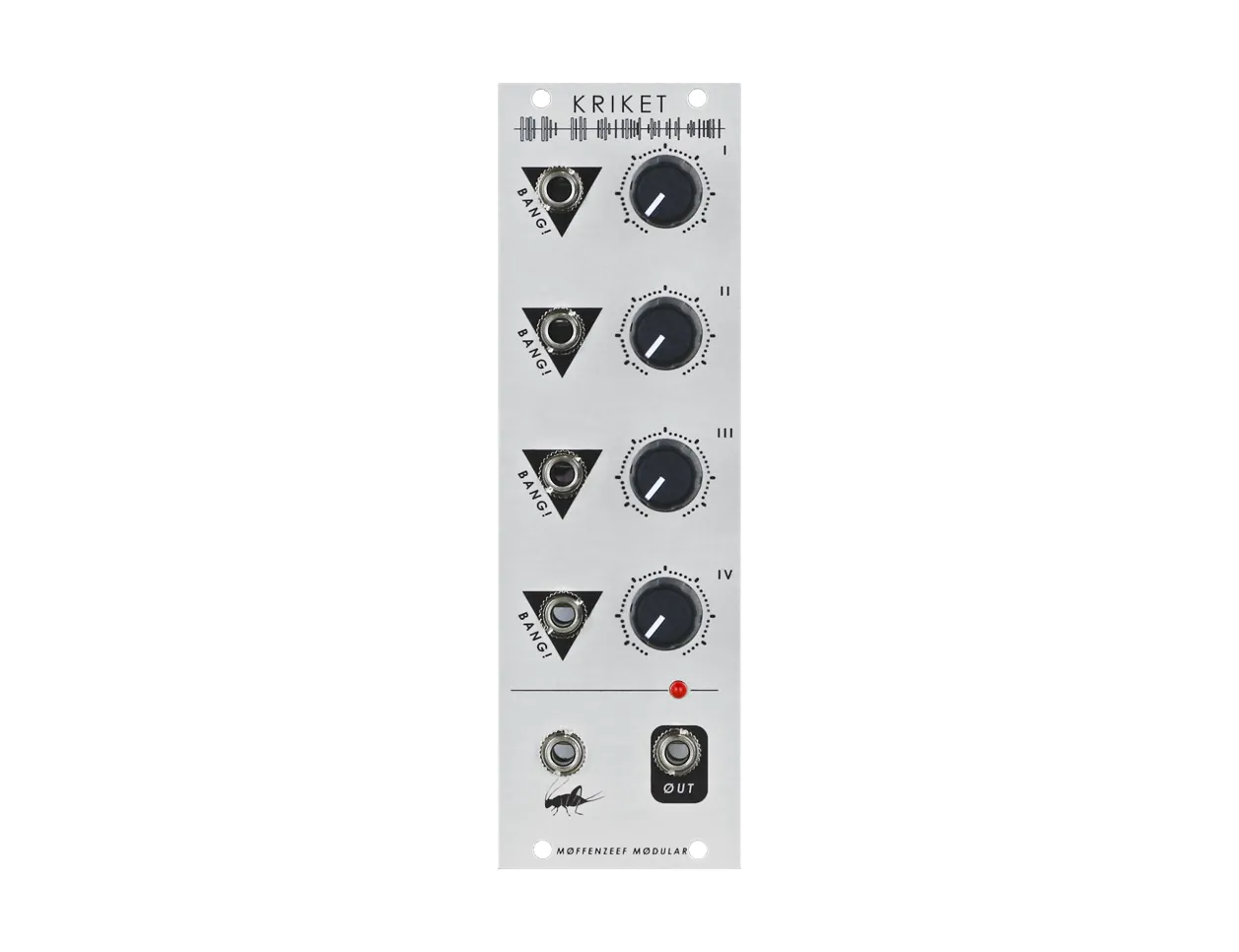

Kriket

Moffenzeef Kriket

The Kriket is a 4 channel percussion generator with buffered trigger inputs that creates bleeps and bloops. The Kriket features CV control over global pitch and signals that are placed into the 'BANG!" inputs make the module emit a square wave directly proportional to the incoming signal. This offers the ability to create different blips and beeps by varying the pulse width. The "Kriket" input connects to the 4 channel vactrol that controls the pitches simultaneously. The Kriket can make sounds resembling anything from short chirps to extended heart monitor beeps.

Kriket Features

• BANG! - Buffered Trigger Input (Goes High When 2V or Higher is Received)
• I, II, III, IV - Pitch Per Channel 185Hz - 14KHZ
• Quad Buffered Trigger Inputs
• Kriket Input - Quad Unipolar Vactrol Pitch CV Input (~1.5V - 5V)
• Skiff Friendly
• Reverse Polarity Protection
• Current Limiting Resistors
• Shrouded Header
