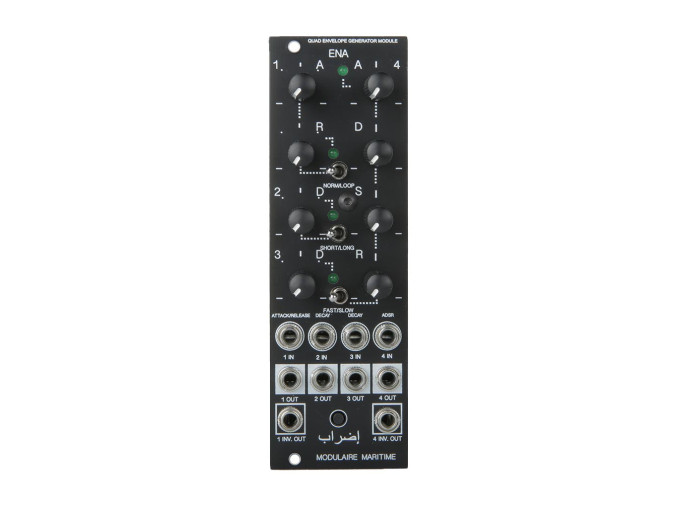

Modulaire Maritime ENA
Get loads of modulation from the compact ENA, Modulaire Maritime's quad envelope generator providing four unique and flexible envelope types. Including your typical ADSR style of envelopes, you also get an AR style for shaping tips and tails as well as two decay envelopes for drum and bend-like shaping. Envelopes one and four respond to gating for held signals such as leads, pads and basses, while envelopes two and three are better suited for use of effects and percussion as they only can be triggered. The three center switches offer time-changing functionality to three of the four envelopes, including looping, length, and rate of staging.
Each envelope is normalled to the first channel's gate input, but each envelope can be gated or triggered from their respective CV input. The bottom trigger button acts like a manual trigger for all four envelopes based on normalization breaks, and the six outputs not only feature each envelope's output but also inverted outputs for envelope one and four. For a variety of modulation tools that will fit nicely in any size rack, add Modulaire Maritime's ENA to your modular system.
ENA Features
- Quad envelope generator module
- Two decay envelopes, one attack/release envelope, and one ADSR envelope
- Envelope one can be set to one shot or looping
- Two envelope length switches to determine the stage range of envelopes two and four
- Each envelope has independent gating/triggering and outputs
- Envelope one and four each have a separate inverted output
- Trigger button located at the bottom, triggers all four envelopes
- Eurorack module
- Width: 8hp
- Depth: 25mm
- Current draw: 40mA @ +12V, 20mA @ -12V
