MDLR CaseMDLR PWR Powered Busboard

MDLR CASE MDLR PWR POWERED BUSBOARD

Note: This does not include a power brick; it must be purchased separately.

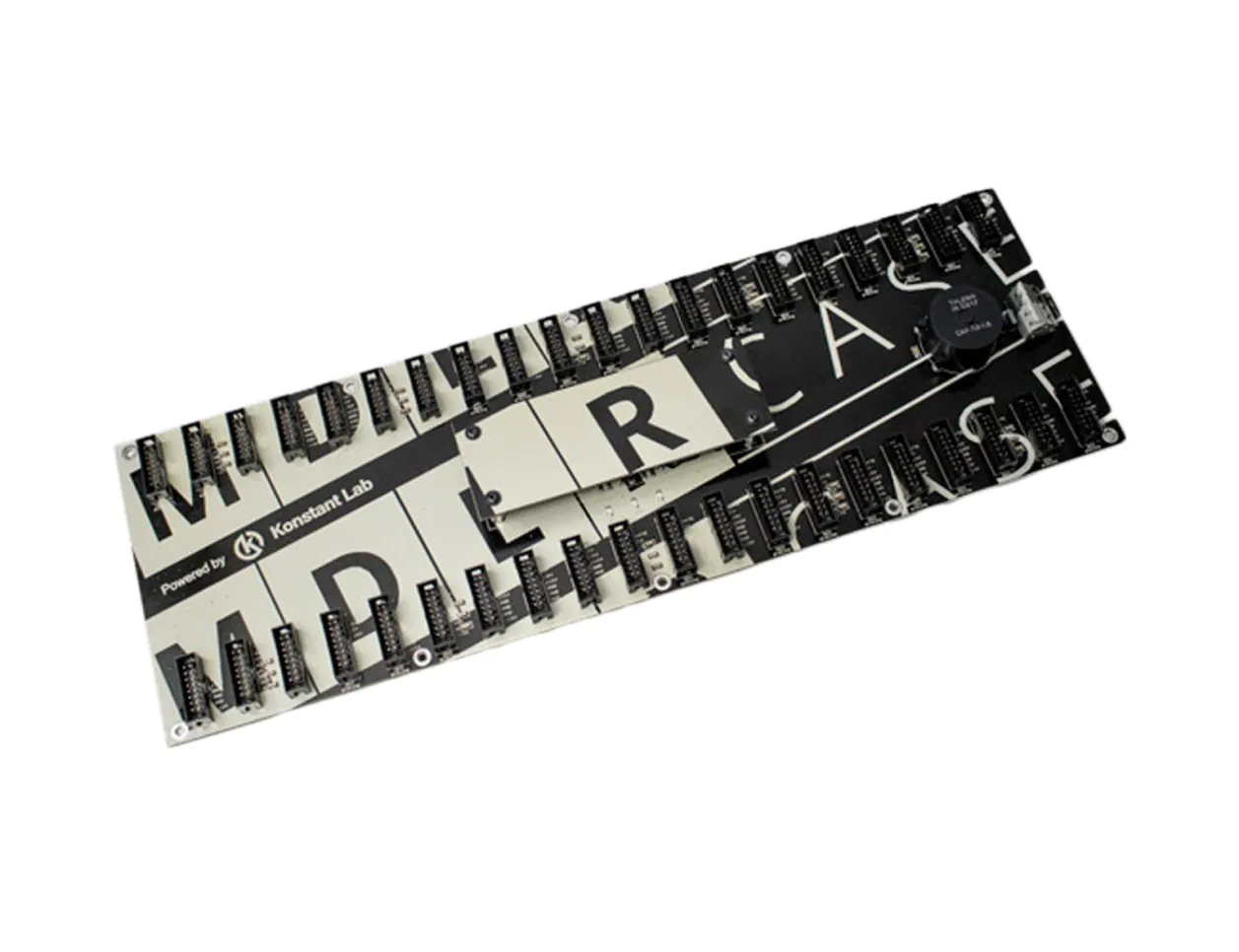

MDLR PWR, from MDLR CASE, is a low noise and high-powered busboard for Eurorack modular synthesizer systems. It features 40 headers for plenty of connectivity, giving users ample opportunity to include all of their favorite modules. Although it is intended for 6U/104HP systems, it can easily be paired with a second board for larger setups. It is extremely easy to install and great for DIY projects. Even better, MDLR PWR's inputs and outputs are fully protected, providing ample security for all connected modules.

MDLR PWR POWERED BUSBOARD FEATURES

• Provides up to 2A @ +12V, 1.2A @ -12V, and 1.5A @ +5V
• Additional input filter on each regulator for minimal output noise and interference
• Shield for reducing RF interferences from regulators
• Star distribution topology on PCB
• Each beam from star topology has 4 headers with noise canceling capacitors.
• Large ground plane on both sides of PCB
• Blue LEDs indicate present and drop of output voltage
