Manikin ElectronicCV-DAC-8 USB to CV Interface

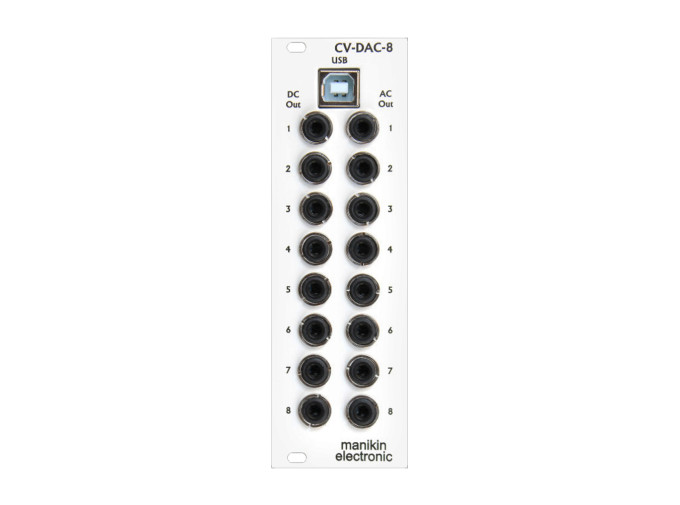

Manikin CV-DAC-8

The Manikin CV-DAC-8 is a 16-output USB to control voltage interface for Eurorack modular synthesizers. A simple USB DAC interface in Eurorack format, the CV-DAC-8 provides eight AC-coupled outputs ideal for sending audio to the modular and eight DC-coupled outputs for translating low-frequency computer signals into Eurorack-compatible control voltages.

Ideal for interfacing with open-ended computer music toolkits like Max/MSP, Pure Data, Supercollider, Reaktor, VCVRack, and more, the CV-DAC-8 promises extensive computer control of analog modular synthesis.

CV-DAC-8 Features

• 16-output USB to CV interface module
• Eight AC-coupled outputs optimized for audio signals
• Eight DC-coupled outputs optimized for sending control voltages
• Sample rates from 44.1kHz to 192kHz
• 16 bit or 24 bit resolution
• PC and Mac compatible
• USB-B jack for computer connection
• 0-5V range on DC-coupled outputs
