CV / Gate Sync Expander

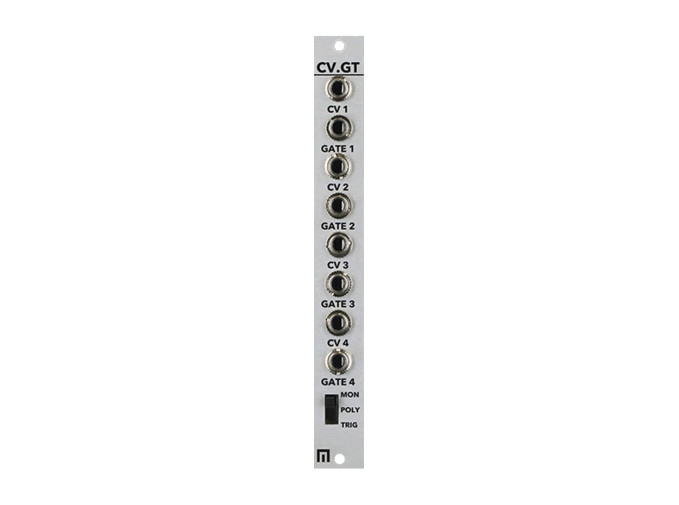

Malekko Heavy Industry CV/Gate Expander

The Malekko Heavy Industry CV/Gate Expander for their Sync module. The latter routes MIDI messages to the expander’s CV outputs in accordance with three selectable modes: mono, poly, and trigger.

CV/Gate Expander Features

• 4 sets of CV/Gate connections
• 3 way mode switch
• Mono (MIDI channels 1-4 sent separately out cv/gate jacks 1-4)
• Poly (4 notes sent over channel 1 to the 4 cv/gate jacks)
• Drum Trigger (notes C1-G1 send gates out of the 8 jacks)
