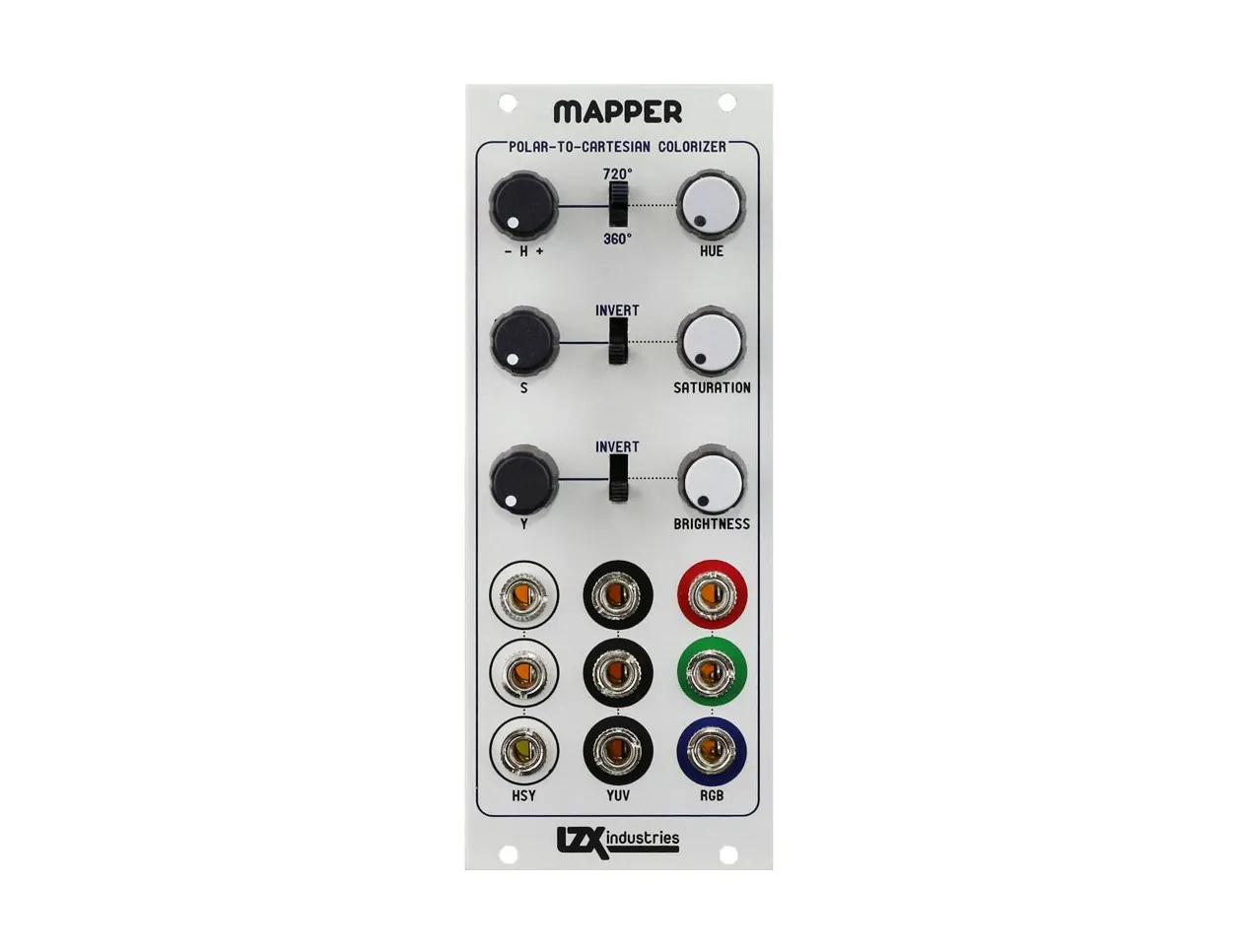

The LZX Mapper converts hue, saturation, and brightness voltage into RGB and YUV component colorspaces. Users can route black and white video sources through the hue modulation input for thermographic color results. The module’s core is comprised of an analog Wideband waveshaper with Polar and Cartesian coordinates and 720 degrees of linear rotation.

Mapper Features

• Hue, Saturation & Brightness modulation inputs with dedicated gain controls
• Saturation & Brightness modulation attenuators have an inversion switch
• Hue input is selectable between 360 and 720 degrees of rotation at full scale
• Dedicated Hue, Saturation & Brightness offset controls
• Polar-to-cartesian waveshaper design transforms a linear input voltage (Hue) into Sine / Cosine complement outputs (U &V out.)
• YUV-to-RGB colorspace converter
