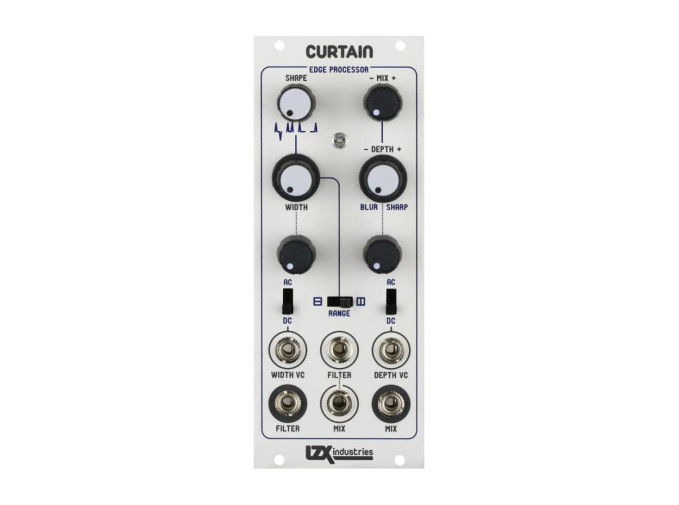

The LZX Curtain is a video edge processor ideal for blurring, outline extraction, and sharpening. Internally, the module is comprised of a Wideband voltage controlled filter and multiplier. The module is ideal for both processing video images and adding extra depth/contours to shapes and patterns.
- Voltage controlled filter with 1:100 continuous tuning ratio allows a full sweep from thin to wide time constants
- Three range settings cover a cutoff range from 100Hz to 5MHz
- Switchable rectifier allows selection of positive rising edges and falling negative edges, both edges positive, rising edge only, or falling edge only
- Voltage controlled depth allows a continuous sweep of filter output amplitude and inversion
- Separate inputs for the filter and output mix allow edge processing from once source and output mixing with another.
- Dedicated filter and mix outputs allow further external processing
- All signal and control paths perform at high frequency, video rate modulation speeds
- AC/DC input coupling switches and inverting level attenuators on voltage control inputs.
- Eurorack Video Module
- Width: 10HP
- Depth: 32mm
- Current Draw: 70mA@+/-12v
