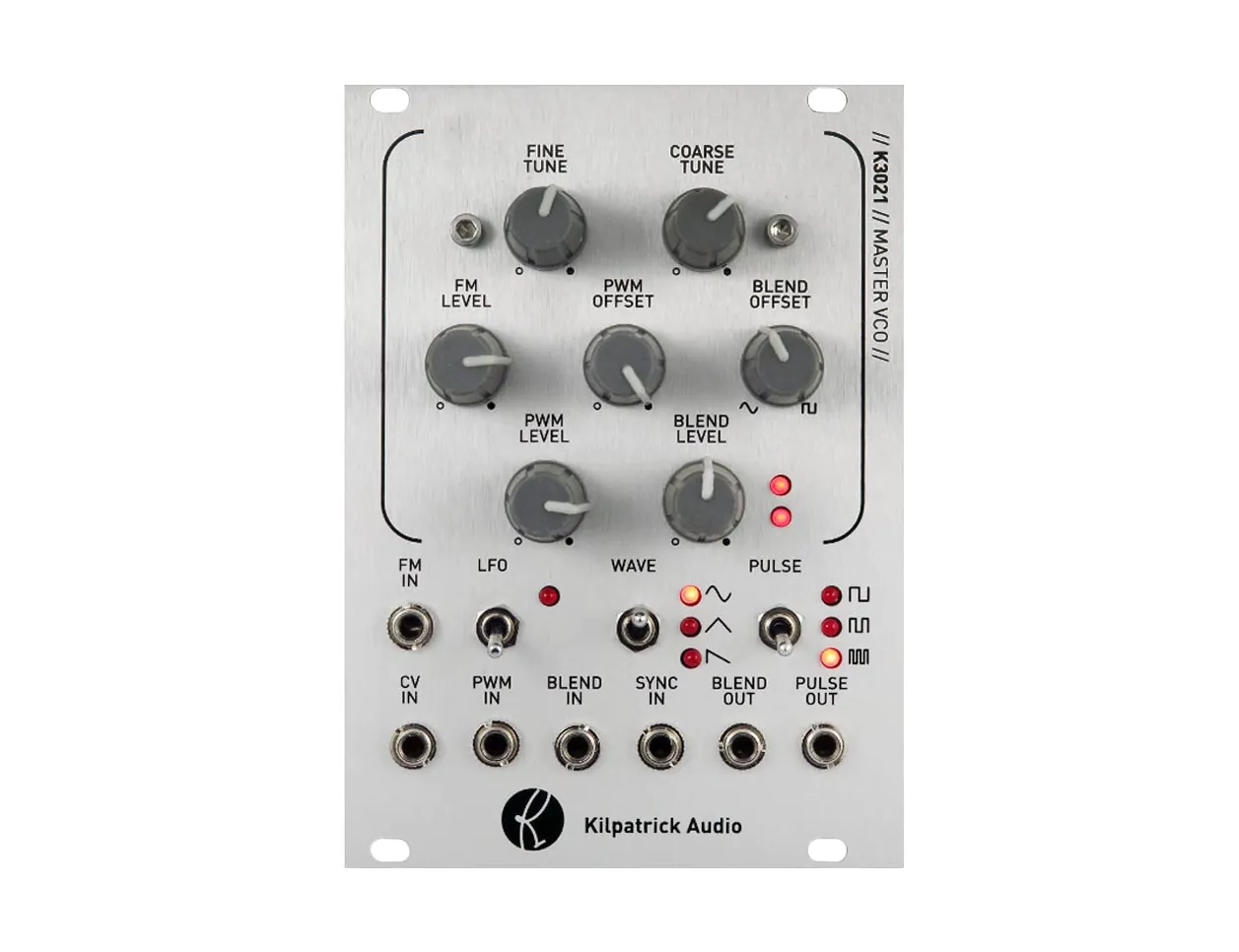

Kilpatrick Audio K3021 Master VCO

The Kilpatrick Audio K3021 is a single channel version of the K3020. Like its dual-channel sibling, the K3021 features triangle core VCO with waveshapers, allowing for even more timbral possibilities. Because of this, the K3021 is also optimal for LFO duties. The module’s waveshaping section boasts three distinct pulse outputs, which can be blended to produce even more complex waveforms.

K3021 Features

• Master VCO with on board precision power regulation
• LED indication of selected switch positions and VCO core activity
• 1V/octave CV input - factory trimmed for 1V/octave response
• Linear FM input with level control
• Fine and coarse tuning controls
• Normal VCO frequency range: 2Hz to 15kHz
• LFO mode switch - period approx. 60 seconds to low audio range
• Temperature compensated exponential converter with matched transistors
• All-new discrete triangle-core and sine wave shaper
• Wave shaper with sine, triangle or ramp waveforms - switch selectable
• Pulse shaper with triple pulse width modulators for complete timbres
• Voltage controlled mixing between wave and pulse waveforms
• High-end blend VCAs with ultra-low distortion and linear control
• Sync input for hard syncing of VCO core
• PWM input with level and offset controls
• Blend VCA control input with level and offset controls - full deflection with 5Vpk-pk
• Blend output - output from the blend VCA containing wave and/or pulse waveforms
• Pulse output - dedicated output from the pulse shaper containing pulse waveform
