Intellijel DesignsTPS80W Triple Power Supply Busboard (Type A)

Intellijel TPS80W

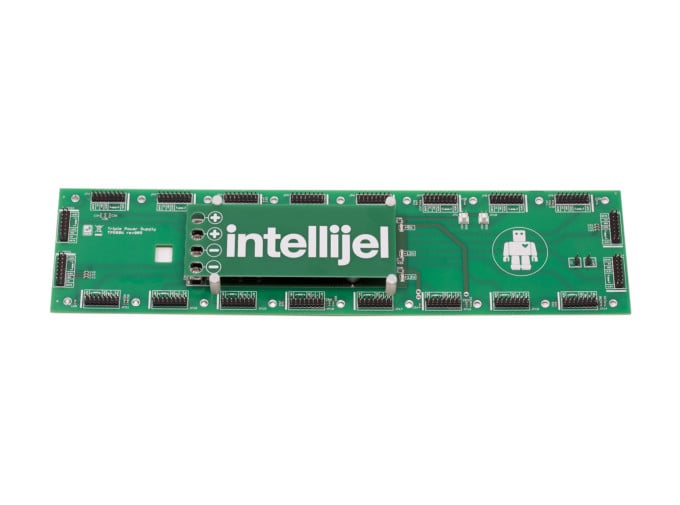

Intellijel’s TPS80W Triple Power Supply (Type A) is an efficient, high power, low noise power system designed exclusively for use in a Eurorack modular setup. This power supply has been painstakingly constructed to offer an optimal amount of power to even the most advanced digital modules. The Type A designates the busboards all-vertical headers.

TPS80W Features

• 80 Watt integrated switching power supply (Type A)
• All Vertical Headers on the Busboard
• Low impedance star distribution due to 4 layer PCB
• +12V output at 3A, -12V output at 3A, +5V output at 1.5A
• Triple 120° phased controller for low induced noise
• Output short circuit protection and foldback current limiting
• Output overvoltage protection from transient overshooting
• Soft start for controlled start up operation
• +/-1% output voltage accuracy
• Fits comfortably in an 84HP  3U case or 6U case and larger
• 34cm wide  x 8cm tall and max height of 20mm
• Mounting holes can be used with 0.157" / 4mm PEM snaps for quick install
• Intellijel highly recommends powering the TPS80W with the MeanWell GS90A15-P1M 90W AC/DC PSU
